Describe the process of two-dimensional gel electrophoresis described in this chapter. In what w

Describe the process of two-dimensional gel electrophoresis...

Key Concepts

Comparison with One-Dimensional Electrophoresis

One-dimensional electrophoresis separates proteins on the basis of a single property—either charge or size—and is often limited by overlapping protein bands, which can obscure the presence of less abundant proteins. In contrast, two-dimensional electrophoresis employs a two-step separation process, significantly improving the clarity and resolution of the protein profile. This makes two-dimensional electrophoresis a more powerful tool for analyzing complex protein mixtures, especially in proteomics studies.

SDS-PAGE

SDS-PAGE (sodium dodecyl sulfate polyacrylamide gel electrophoresis) is the second dimension of analysis in two-dimensional gel electrophoresis. After proteins have been separated by their isoelectric point, they are further separated according to their molecular weight using SDS-PAGE. SDS denatures the proteins and imparts a uniform negative charge on them, allowing them to be separated solely based on size, which enhances the resolution of the gel.

Enhanced Resolution

The combination of isoelectric focusing and SDS-PAGE in two-dimensional gel electrophoresis provides enhanced resolution by exploiting two independent protein properties. This allows for the separation of proteins that may have similar molecular weights but different isoelectric points, or vice versa, thereby overcoming the limitations of one-dimensional electrophoresis and enabling the detection and analysis of a more comprehensive range of proteins.

Two-Dimensional Gel Electrophoresis

Two-dimensional gel electrophoresis is a powerful analytical technique used primarily in proteomics to separate complex protein mixtures based on two independent properties. In the first dimension, proteins are separated according to their isoelectric point, while in the second dimension, they are separated by their molecular weight. This dual separation process enables the resolution of thousands of proteins simultaneously, making it superior for detailed proteomic analysis.

Isoelectric Focusing

Isoelectric focusing (IEF) is the first step in two-dimensional gel electrophoresis where proteins are separated based on their isoelectric points (pI). During IEF, proteins migrate through a pH gradient within a gel matrix until they reach a point where their net charge is zero. This precise separation based on charge differences is essential for resolving proteins that might overlap in a single-dimension method.

Transcript

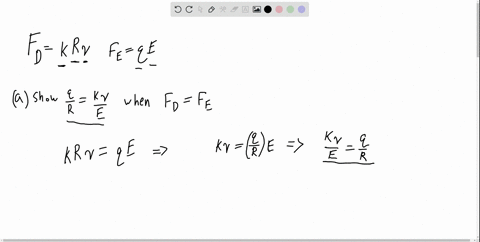

00:01 From part a, we know the acceleration is going to be equal to zero, so the velocity is either going to be zero or moving at a constant.

00:07 And the only two forces are the drag forces and the electric field forces.

00:15 And these perfectly must balance out.

00:18 And so qe is the electric force here.

00:24 And the drag force, we're told, is k times r times v.

00:30 And so we can shift things around here.

00:33 I'm going to divide by an r and an e, and i get q over r is equal to kv over e, which is what part a wanted us to show.

00:47 Now, taking the previous equation we just found, and i'm going to solve for v, and when i do that, i get v as equal to eq over kr, and we know this is a constant since the acceleration is not changing, or the acceleration is zero, so v is not changing.

01:08 In other words, it's a constant.

01:11 And so if v is a constant, we can use the formula that the velocity is equal to the distance traveled over the time.

01:17 And then rearranging this for x, i get x is equal to the velocity times of time.

01:21 This is only valid if v is a constant.

01:25 And now, just plugging in v, i get eq over kr, and then the time is t.

01:32 It's given in the problem.

01:35 And then now this is just equal to et over k.

01:40 And then i have q over r here.

01:42 And this is what part b wanted us to show.

01:49 In part c, we're looking at changing the factor of q over r.

01:53 And so let me just rewrite the result...
