Design a logic circuit with four inputs A, B, C, and D, such that the output will be high only w

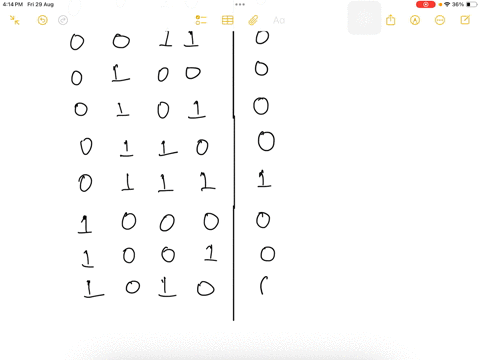

step 1 It has been given that provided set of vectors provided set, I'm sorry for this, provided set of

Design a logic circuit with four inputs A, B, C, and D, such...

Key Concepts

Non-zero Input Constraint

When designing a circuit to have a high output only when an even number of inputs are high and greater than zero, an additional condition must be incorporated to exclude the case where all inputs are low. This often requires a separate circuit section to detect when at least one input is active, ensuring that the zero case does not erroneously trigger a high output.

Boolean Algebra and Logic Simplification

Boolean algebra provides the theoretical framework and set of techniques for representing and simplifying logic functions. It is used to derive simplified expressions from a truth table or from the given design conditions, which helps in reducing the number of gates and optimizing the circuit implementation.

Even Parity Detection

Even parity involves ensuring that the total number of high (or 1) inputs is even. In digital logic design, circuits can use XOR gates to check parity, as XOR naturally outputs a high signal when an odd number of inputs are high, which can be manipulated to determine even parity conditions through further logic adjustments.

Combinational Logic Circuit

A combinational logic circuit is one where the output is solely determined by the current inputs, without any memory elements. Designing such circuits requires careful analysis of the input conditions and composing the required output logic using basic gates such as AND, OR, XOR, and NOT.
