Design a mirror arrangement so that light from a laser...

Name: Problem 13, Chapter 21: College Physics
Uploaded: 2020-06-10T19:39:34-08:00
Duration: 1 min 9 s
Channel: Mayukh Banik
Description: Design a mirror arrangement so that light from a laser pointer will travel in exactly the opposite direction after it reflects off the mirror(s), even if you change the direction the laser pointer is pointing.

Design a mirror arrangement so that light from a laser pointer will travel in exactly the opposite direction after it reflects off the mirror(s), even if you change the direction the laser pointer is pointing.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Retroreflection

Retroreflection is the optical phenomenon whereby light rays are reflected back toward their source regardless of the angle at which they hit the reflective surface. This behavior is achieved through specific geometrical configurations and is important in applications that require light to be returned in the exact reverse direction from which it came.

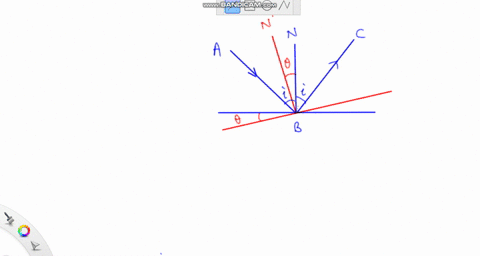

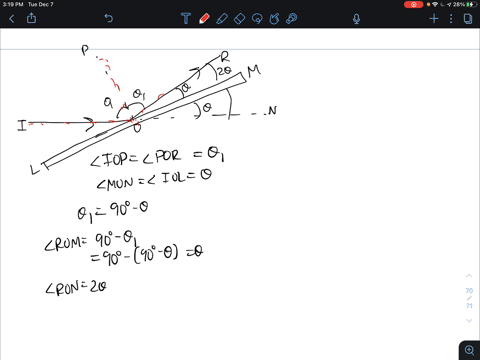

Law of Reflection

The law of reflection states that when light strikes a surface, the angle at which it arrives (the angle of incidence) is equal to the angle at which it departs or reflects (the angle of reflection). This fundamental principle is essential in understanding how light interacts with mirror surfaces and forms the basis for predicting and designing the paths of reflected light rays.

Corner Cube Retroreflector

A corner cube retroreflector is a device composed of three perpendicular reflective surfaces that work together to reverse the direction of an incoming light beam. Through multiple reflections, the beam is inverted even if it arrives from various angles, making the corner cube an ideal example of a mirror arrangement that facilitates retroreflection.
