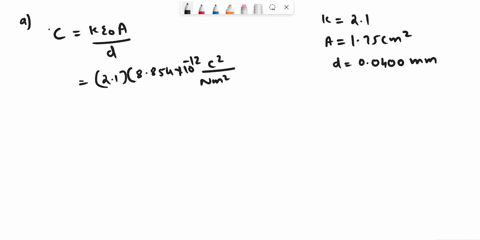

Determine (a) the capacitance and (b) the maximum potential difference that can be applied to a Teflon-filled parallel-plate capacitor having a plate area of 1.75 $\mathrm{cm}^{2}$ and a plate separation of $0.0400 \mathrm{mm} .$

Key Concepts

Parallel-Plate Capacitor

A parallel-plate capacitor is an electrical component consisting of two conductive plates separated by an insulating material or dielectric. Its design allows it to store electric energy by accumulating opposite charges on the two plates. The capacitance, or the ability to store charge, depends on the area of the plates, the distance between them, and the electrical properties of the material between the plates.

Capacitance Calculation

The capacitance of a parallel-plate capacitor is calculated using the formula C = ?A/d, where ? represents the permittivity of the dielectric material (often given as ? = ???, with ?? being the permittivity of free space and ? the dielectric constant), A is the area of one of the plates, and d is the separation between the plates. This relationship demonstrates how geometric dimensions and material properties influence the capacitor’s ability to store charge.

Dielectric Materials

Dielectric materials are insulators placed between the plates of a capacitor to increase its capacitance by reducing the electric field for a given charge. The effectiveness of a dielectric is characterized by its dielectric constant, which measures how much the material can increase the capacitance relative to a vacuum. The choice of dielectric also affects other capacitor properties such as operating voltage and thermal stability.

Dielectric Breakdown

Dielectric breakdown refers to the phenomenon where a dielectric material becomes conductive when subjected to an electric field that exceeds its breakdown strength. This sets a limit on the maximum potential difference that can be safely applied to the capacitor without causing failure. The breakdown strength is specific to the material used and must be considered when designing capacitors to ensure reliable operation.
