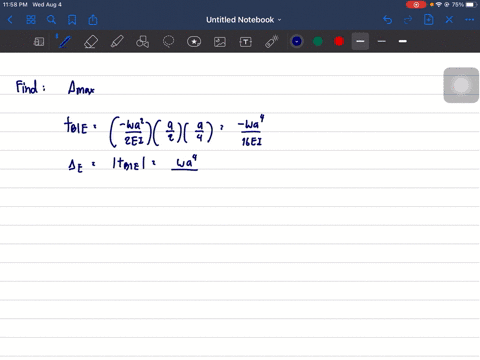

Determine the slope at A and the maximum deflection in the beam. E I̅ is constant.

Name: Problem 70, Chapter 12: Mechanics of Materials
Uploaded: 2021-08-04T22:39:31-08:00
Duration: 3 min 46 s
Channel: Chai Santi
Description: Determine the slope at A and the maximum deflection in the beam. E I̅ is constant.

step 1 In this question we have to find the slope at point A and a maximum deflection in the beam. So f

Determine the slope at A and the maximum deflection in the...

Key Concepts

Euler-Bernoulli Beam Theory

This fundamental theory of structural mechanics relates the applied loads on a beam to its deflection and bending moments. It assumes that plane sections remain plane after deformation, which allows for the derivation of a differential equation governing the beam's deflection under load. The theory is essential for analyzing slender beams where shear deformations are negligible compared to bending deformations.

Moment-Curvature Relationship

The moment-curvature relationship links the bending moment in the beam to its curvature using the formula M = -EI d²y/dx². Here, E is the modulus of elasticity and I is the second moment of area, and their product (EI) represents the beam’s flexural rigidity. This concept is critical as it forms the basis for determining both the slope and deflection of the beam through integration of the curvature.

Flexural Rigidity (EI)

The product of the modulus of elasticity (E) and the moment of inertia (I) represents the beam's resistance to bending. A constant EI indicates the material and geometric properties of the beam are uniform along its length, simplifying the analysis of deflection. Understanding flexural rigidity is vital to predicting how beams will behave under various load conditions.

Integration of Differential Equations

To determine the deflection and slope of a beam, the moment-curvature differential equation needs to be integrated with respect to the beam’s length. This integration introduces constants that must be determined using the specific boundary conditions of the problem. The process highlights the connection between the bending moments and the resulting deformations.

Boundary Conditions in Beam Analysis

Boundary conditions are used to solve the integration constants in the deflection equation. They represent the physical constraints and support conditions (such as fixed, simply supported, or free ends) of the beam. Applying these conditions ensures that the resulting deflection and slope calculations accurately reflect the behavior of the beam under load, including the locations of maximum deflection and specific slopes at given points.
