Draw geometrical isomers of each of the following complex...

Draw geometrical isomers of each of the following complex ions. a. $\left[\mathrm{Co}\left(\mathrm{C}_{2} \mathrm{O}_{4}\right)_{2}\left(\mathrm{H}_{2} \mathrm{O}\right)_{2}\right]^{-}$ c. $\left[\operatorname{Ir}\left(\mathrm{NH}_{3}\right)_{3} \mathrm{Cl}_{3}\right]$ b. $\left[\mathrm{Pt}\left(\mathrm{NH}_{3}\right)_{4} \mathrm{I}_{2}\right]^{2+}$ d. $\left[\mathrm{Cr}(\mathrm{en})\left(\mathrm{NH}_{3}\right)_{2} \mathrm{I}_{2}\right]^{+}$

Draw geometrical isomers of each of the following complex ions.
a. $\left[\mathrm{Co}\left(\mathrm{C}_{2} \mathrm{O}_{4}\right)_{2}\left(\mathrm{H}_{2} \mathrm{O}\right)_{2}\right]^{-}$

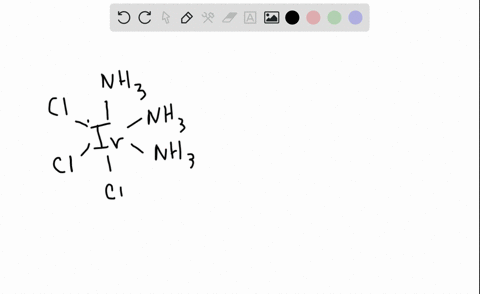

c. $\left[\operatorname{Ir}\left(\mathrm{NH}_{3}\right)_{3} \mathrm{Cl}_{3}\right]$
b. $\left[\mathrm{Pt}\left(\mathrm{NH}_{3}\right)_{4} \mathrm{I}_{2}\right]^{2+}$
d. $\left[\mathrm{Cr}(\mathrm{en})\left(\mathrm{NH}_{3}\right)_{2} \mathrm{I}_{2}\right]^{+}$

Key Concepts

Coordination Chemistry

This field studies compounds where central metal atoms or ions bind with surrounding molecules or ions (ligands) through coordinate covalent bonds. A deep understanding of coordination chemistry is essential when analyzing how different ligands are arranged around a metal center, which in turn influences the compound’s chemical reactivity and physical properties.

Coordination Number and Geometry

In coordination compounds, the coordination number (the number of ligand donor atoms bonded to the central metal) determines the geometry of the complex. For example, a coordination number of six typically leads to an octahedral geometry, while a coordination number of four, especially in the case of d^8 metal ions, often results in a square planar geometry. This concept is crucial for predicting the spatial arrangement of ligands and the types of isomerism possible.

Geometrical Isomerism

Geometrical isomerism in coordination compounds refers to the existence of compounds that have the same formula but differ in the positions of the ligands around the metal center. These isomers, such as cis and trans forms, can exhibit different chemical and physical properties, making this concept key in understanding structure–property relationships in coordination chemistry.

Cis-Trans Isomerism

A subtype of geometrical isomerism, cis-trans isomerism occurs when two identical or similar ligands can be arranged either adjacent to each other (cis) or opposite each other (trans) in the coordination sphere. This concept is particularly significant in both octahedral and square planar geometries, where the relative positions of ligands can significantly alter the complex’s properties.

Facial–Meridional (fac–mer) Isomerism

Fac–mer isomerism is observed in octahedral complexes having three identical ligands. In the facial (fac) isomer, the three identical ligands occupy one face of the octahedron, while in the meridional (mer) isomer, they are arranged in a plane that includes the metal center. Understanding this type of isomerism is crucial when analyzing complexes with sets of similar ligands.

Chelating Ligands

Chelating ligands are multidentate ligands that can attach to a central metal atom at two or more binding sites, forming ring structures known as chelates. The presence of chelating ligands in a coordination complex can impact its stability and possible isomerism, as the fixed binding sites restrict the complex’s flexibility compared to monodentate ligands.
