Draw the line-angle structure for the following: (a) Lauric acid (b) Stearic acid (c) Oleic acid

Draw the line-angle structure for the following: (a) Lauric...

Key Concepts

Line-Angle Structure Representation

Line-angle, or skeletal, structures are a simplified way to depict organic molecules, where lines represent bonds and vertices represent carbon atoms. This method omits hydrogen atoms attached to carbons (unless necessary for clarity) and emphasizes the connectivity of the molecule, making it particularly useful for illustrating complex organic compounds.

Carboxylic Acid Functional Group

The carboxylic acid functional group, characterized by the -COOH moiety, is a key feature in fatty acids. It consists of a carbonyl group (C=O) bonded to a hydroxyl group (OH) and defines the acidic behavior of these molecules. In line-angle drawings, this group is typically shown explicitly at one end of the hydrocarbon chain.

Fatty Acid Structure

Fatty acids are long-chain carboxylic acids that can vary in chain length and degree of saturation. They serve as important building blocks in lipids and energy storage. Understanding their structural framework, including a terminal carboxyl group and a hydrocarbon chain, is crucial for accurately representing them in chemical diagrams.

Saturated and Unsaturated Hydrocarbons

The hydrocarbon portions of fatty acids can be either saturated or unsaturated. Saturated fatty acids contain only single bonds, resulting in a straight chain, while unsaturated fatty acids include one or more carbon–carbon double bonds that introduce kinks into the chain. Recognizing these differences is essential when drawing their structural representations, as it impacts both the physical and chemical properties of the molecules.

Transcript

00:01 Hey guys, so today we're going to be talking about the line angle structure of a few examples of fatty acids.

00:07 So the first one is loric acid.

00:10 So loric acid, we know the shorthand nomenclature is 12 -0.

00:13 So that means that it has 12 carbons and zero double bonds.

00:17 So as you can see, if we count, we have 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12.

00:32 So we indeed do have 12 carbons and we have no double bonds within this carbon chain.

00:38 So this is the line angle structure of loric acid.

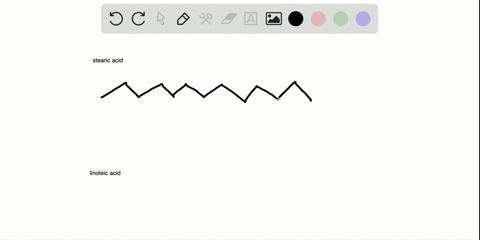

00:43 So next up we have stearic acid.

00:46 So stearic acid has a shorthand nomenclature of 18 .0.

00:50 So that means it's going to have 18 carbons and zero double bonds.

00:54 So we can go ahead and count.

00:55 So one, two, three, four, five, six, seven, 8, 9, 10, 11, 12, 13, 14, 14, 15, 16, 17, 17, 17, and 18.

01:19 So we have 18 carbons and no double bonds for stearic acid.

01:25 Now, how about allelic acid? so allelic acid has a shorthand nomenclature of 181.

01:29 So that means it has 18 carbons.

01:31 So the same amount of carbons as we had here in stearic acid.

01:34 However, we have one double bond.

01:37 So, well, if we count, we can see one, two, three, four, five, six, seven, eight...
