Draw the magnetic field lines that result when the magnetic...

Name: Problem 5, Chapter 5: Physics for the IB Diploma
Uploaded: 2021-07-05T02:37:05-08:00
Duration: 3 min 18 s
Channel: Jose Carlos

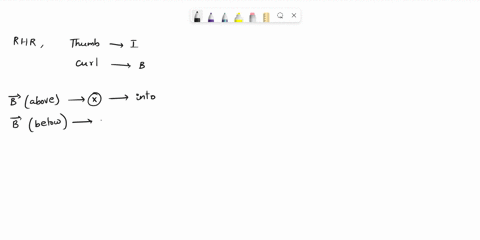

Description: Draw the magnetic field lines that result when the magnetic field of a long straight wire carrying current into the page is superimposed on a uniform magnetic field pointing to the right that lies on the page. (See Figure 6.25 .)

Draw the magnetic field lines that result when the magnetic field of a long straight wire carrying current into the page is superimposed on a uniform magnetic field pointing to the right that lies on the page. (See Figure 6.25 .)

Key Concepts

Right-Hand Rule

The right-hand rule is a mnemonic used to determine the direction of magnetic fields in relation to the current flow. When applied to a current-carrying wire, it implies that if you point the thumb of your right hand in the direction of the current, your fingers will curl in the direction of the magnetic field lines around the wire.

Superposition Principle

The superposition principle states that when multiple magnetic fields are present, the net magnetic field at any point is the vector sum of the individual fields. This principle allows for the analysis of complex magnetic field scenarios by considering each field separately and then combining them.

Magnetic Field Lines

Magnetic field lines are a visual representation of a magnetic field, where the tangent at any point gives the direction of the magnetic field vector. They help in visualizing the strength and direction of the field, with a greater density of lines indicating stronger fields.

Magnetic Field of a Current-Carrying Wire

The magnetic field produced by a current-carrying wire forms concentric circles around the wire. Its magnitude decreases with distance from the wire, and its direction is given by the right-hand rule, where the thumb points in the direction of the current and the fingers curl in the direction of the magnetic field.

Uniform Magnetic Field

A uniform magnetic field is one in which the magnetic field vectors have the same magnitude and direction at every point in a given region. This type of field is often represented by parallel lines of equal spacing and is commonly used as an idealized model in various electromagnetic problems.
