Each of the five connected particles has a mass of 0.5 kg, and G is the mass center of the syste

step 1 Hello everyone, we are going to understand this question here given in the question given mass o

Each of the five connected particles has a mass of 0.5 kg,...

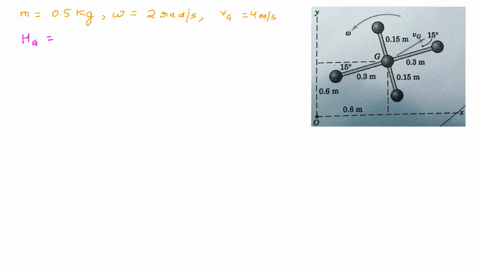

Each of the five connected particles has a mass of $0.5 \mathrm{kg},$ and $G$ is the mass center of the system. At a certain instant the angular velocity of the body is $\omega=2 \mathrm{rad} / \mathrm{s}$ and the linear velocity of $G$ is $v_{G}=4 \mathrm{m} / \mathrm{s}$ in the direction shown. Determine the linear momentum of the body and its angular momentum about $G$ and about $O$.

Key Concepts

Linear Momentum

Linear momentum is defined as the product of the total mass of a system and the velocity of its center of mass. In rigid body dynamics, even if the body is rotating, its overall translational momentum depends solely on the movement of its mass center. This concept simplifies the analysis of the system’s motion by allowing us to treat it as a single particle located at the center of mass when calculating linear momentum.

Angular Momentum

Angular momentum for a rigid body captures the rotational effect of the body about a given point or axis. It is typically computed as the product of the moment of inertia and the angular velocity (L = I?) when taken about the center of mass. However, when angular momentum is computed about a different point, it must additionally account for the contributions due to the translational motion of the center of mass relative to that point.

Center of Mass

The center of mass of a system is the point where the mass of the body can be thought to be concentrated for the purpose of analyzing translational motion. It simplifies the study of the dynamics of systems, particularly in problems involving both translational and rotational motion, by providing a single reference point for the application of conservation laws.

Moment of Inertia

The moment of inertia is a measure of an object’s resistance to changes in its rotational motion about an axis. It depends on the mass distribution of the object relative to the axis of rotation. In composite systems, calculating the moment of inertia about the center of mass or another reference point is essential for determining the angular momentum associated with the body’s rotation.

Parallel Axis Theorem

The parallel axis theorem is a tool used to relate the moment of inertia of a body about an axis through its center of mass to its moment of inertia about any parallel axis. This theorem is useful when calculating the angular momentum about a point that is not the center of mass, as it enables the addition of a term that accounts for the displacement of the center of mass relative to the new axis.
