Euppose you build a two-engine device with the exhaust energy output from one heat engine supplying the input energy for a second heat engine. We say that the two engines are running in series. Let $e_{1}$ and $e_{2}$ represent the efficiencies of the two engines. (a) The overall efficiency of the two-engine device is defined as the total work output divided by the energy put into the first engine by heat. Show that the overall efficiency $e$ is given by $$e=e_{1}+e_{2}-e_{1} e_{2}$$ What If? For parts (b) through (e) that follow, assume the two engines are Carnot engines. Engine 1 operates between temperatures $T_{h}$ and $T_{i} .$ The gas in engine 2 varies in temperature between $T_{i}$ and $T_{c \cdot}$ In terms of the temperatures, (b) what is the efficiency of the combination engine? (c) Does an improvement in net efficiency result from the use of two engines instead of one? (d) What value of the intermediate temperature $T_{i}$ results in equal work being done by each of the two engines in series? (e) What value of $T_{i}$ results in each of the two engines in series having the same efficiency?

Euppose you build a two-engine device with the exhaust energy output from one heat engine supplying the input energy for a second heat engine. We say that the two engines are running in series. Let $e_{1}$ and $e_{2}$ represent the efficiencies of the two engines. (a) The overall efficiency of the two-engine device is defined as the total work output divided by the energy put into the first engine by heat. Show that the overall efficiency $e$ is given by $$e=e_{1}+e_{2}-e_{1} e_{2}$$ What If? For parts (b) through (e) that follow, assume the two engines are Carnot engines. Engine 1 operates between temperatures $T_{h}$ and $T_{i} .$ The gas in engine 2 varies in temperature between $T_{i}$ and $T_{c \cdot}$ In terms of the temperatures, (b) what is the efficiency of the combination engine?
(c) Does an improvement in net efficiency result from the use of two engines instead of one? (d) What value of the intermediate temperature $T_{i}$ results in equal work being done by each of the two engines in series? (e) What value of $T_{i}$ results in each of the two engines in series having the same efficiency?

Key Concepts

Carnot Engine

A Carnot engine is an idealized heat engine that operates on the reversible Carnot cycle. Its efficiency, given by 1 minus the ratio of the cold to the hot reservoir temperatures, sets the theoretical upper limit on efficiency for any heat engine operating between two thermal reservoirs. This concept is central to understanding the limits imposed by the second law of thermodynamics on energy conversion processes.

Heat Engine Efficiency

Heat engine efficiency is the ratio of the work output to the heat input and serves as a measure of how effectively a heat engine converts thermal energy into mechanical work. In analyses involving multiple engines, individual efficiencies contribute to the overall performance, highlighting the ways heat flows and work are distributed within the system.

Series Engine Configuration

In a series configuration, the waste heat or exhaust energy from one engine is used as the input energy for a subsequent engine. This setup leads to a combined system where the overall efficiency is influenced by the sequential energy conversions. The idea is to maximize total work output by recovering energy that would otherwise be lost, even though the overall efficiency cannot exceed that of an equivalent single Carnot engine operating between the highest and lowest temperatures.

Overall Efficiency Formula

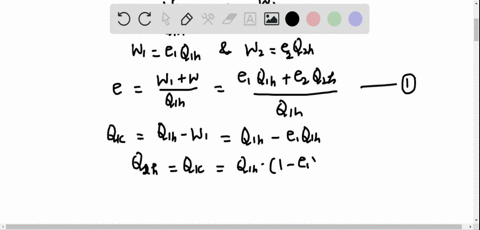

The overall efficiency of a series of two heat engines can be derived by adding the work contributions from the individual engines relative to the initial heat input. The formula e = e? + e? - e?e? encapsulates how the efficiencies of the two stages combine, accounting for the fact that the energy not converted to work in the first stage becomes available for the second stage, thereby linking the performance of both engines.

Intermediate Temperature Optimization

The intermediate temperature in a system of two heat engines operating in series serves as the boundary between the high- and low-temperature reservoirs for the first and second engines, respectively. Determining this temperature is crucial, as it affects both the work output distribution between the engines and their individual efficiencies. Optimizing this parameter involves conditions where either the work output or the efficiencies of the engines are balanced, providing insights into the ideal operational configuration.
