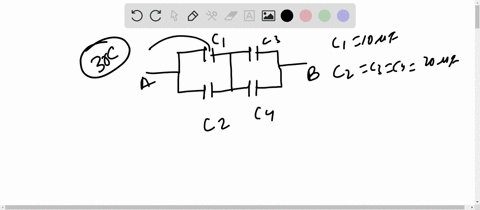

Figure $25-58$ shows a four capacitor arrangement that is connected to a larger circuit at points $A$ and $B .$ The capacitances are $C_{1}==$ 10$\mu \mathrm{F}$ and $C_{2}=C_{3}=C_{4}=20 \mu \mathrm{F}$ The charge on capacitor 1 is 30$\mu \mathrm{C}$ . What is the magnitude of the potential difference $V_{A}-V_{B} ?$

Figure $25-58$ shows a four capacitor arrangement that is connected to a larger circuit at points $A$
and $B .$ The capacitances are $C_{1}==$
10$\mu \mathrm{F}$ and $C_{2}=C_{3}=C_{4}=20 \mu \mathrm{F}$
The charge on capacitor 1 is 30$\mu \mathrm{C}$ .
What is the magnitude of the potential difference $V_{A}-V_{B} ?$

Key Concepts

Capacitor Charge-Voltage Relationship

This concept is based on the fundamental equation Q = CV, which relates the charge stored on a capacitor with its capacitance and the voltage across it. It is a central principle in circuit analysis that allows one to determine the voltage when the charge and capacitance are known, or vice versa.

Series and Parallel Capacitor Combinations

Understanding how capacitors combine in series and parallel is essential for analyzing complex circuits. In series configurations, the same charge appears on each capacitor and the reciprocal of the equivalent capacitance is the sum of the reciprocals of the individual capacitances, while in parallel configurations, the equivalent capacitance is simply the sum of the individual capacitances and the voltage across each capacitor remains the same.

Voltage Distribution Across Capacitors

In circuits where capacitors are arranged in series, the voltage applied to the combination is divided among the capacitors inversely proportional to their capacitances. This concept emphasizes that even though the charge on each capacitor is identical in a series circuit, the voltage drop across each one can be different based on their individual capacitance values.

Equivalent Capacitance in Complex Networks

This involves reducing a complex arrangement of capacitors to a single equivalent capacitance by recognizing and appropriately combining series and parallel groups. Calculating the equivalent capacitance simplifies the analysis of the overall voltage across the network when a known charge or applied voltage is provided.
