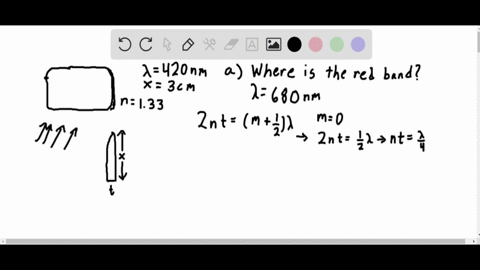

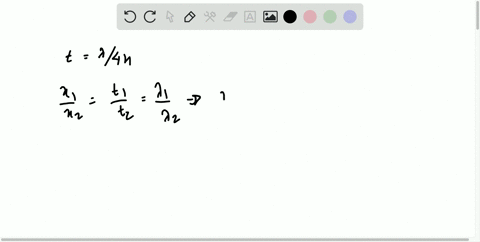

Figure $\mathrm{CQ} 27.4$ shows an unbroken soap film in a circular frame. The film thickness increases from top to bottom, slowly at first and then rapidly. As a simpler model, consider a soap film $(n=1.33)$ contained within a rectangular wire frame. The frame is held vertically so that the film drains downward and forms a wedge with flat faces. The thickness of the film at the top is essentially zero. The film is viewed in reflected white light with near-normal incidence, and the first violet $(\lambda=420 \mathrm{nm})$ interference band is observed $3.00 \mathrm{cm}$ from the top edge of the film. (a) Locate the first red $(\lambda=680 \mathrm{nm})$ interference band. (b) Determine the film thickness at the positions of the violet and red bands. (c) What is the wedge angle of the film?

Key Concepts

Wedge Angle Determination

The wedge angle is the small angle between the two surfaces forming the thin film. It can be determined by relating the change in film thickness to the corresponding distance over which the change occurs. Accurate knowledge of the wedge angle is key to understanding and predicting the interference pattern, as it directly impacts the optical path difference across the film.

Wedge-Shaped Film Geometry

A wedge-shaped film has a thickness that changes linearly with distance along the film. This geometry causes the interference fringes to appear as straight, evenly spaced lines. Understanding this configuration is essential for relating the spatial positions of the fringes to the local thickness of the film.

Optical Path Difference and Phase Shift

The optical path difference in a thin film is determined by the geometric path traveled through the film and its refractive index. Additionally, phase shifts (typically a ? shift when light reflects from a medium of higher refractive index) must be taken into account. These factors together set the conditions for constructive or destructive interference at different points in the film.

Interference Conditions (Fringe Order)

The interference conditions are quantified by the fringe order, which relates the film thickness to constructive or destructive interference specific to particular wavelengths. In a wedge-shaped film, the thickness varies linearly with position, leading to successive interference fringes corresponding to different orders. Identifying the order is crucial to link the measured fringe positions to the film thickness.

Thin Film Interference

Thin film interference occurs when light waves reflect off the upper and lower boundaries of a film with a thickness comparable to the light’s wavelength. The interference pattern results from the optical path difference between the two reflected waves, which can constructively or destructively interfere depending on the film thickness, wavelength, and any phase changes upon reflection.
