Figures P11.40 (a-f) illustrate NPN and PNP BJTs with biased...

Name: Problem 40, Chapter 11: Essentials of Electrical and Computer Engineering
Uploaded: 2021-11-26T04:12:04-08:00
Duration: 1 min 54 s
Channel: Chai Santi
Description: Figures P11.40 (a-f) illustrate NPN and PNP BJTs with biased junctions. For each case identify each of the junctions as forward or reverse biased. Also identify the mode of operation of the BJT, that is, cutoff, saturation, active, or reverse-active, and redraw each circuit with the proper transistor symbol. Figure P11.40 can't copy

Figures P11.40 (a-f) illustrate NPN and PNP BJTs with biased junctions. For each case identify each of the junctions as forward or reverse biased. Also identify the mode of operation of the BJT, that is, cutoff, saturation, active, or reverse-active, and redraw each circuit with the proper transistor symbol. Figure P11.40 can't copy

Key Concepts

Bipolar Junction Transistor (BJT) Structure and Operation

A BJT is a three-terminal semiconductor device comprising the emitter, base, and collector, where charge carriers are injected into and collected from these regions. The behavior of the device depends heavily on the bias applied across the junctions between these regions, which in turn controls the level of conduction between the terminals. This fundamental structure underpins the operation of NPN and PNP transistors and is critical to understanding how they amplify or switch signals.

Junction Biasing

Junction biasing refers to the condition applied to the diodes formed by the emitter-base and collector-base junctions in a transistor. When a junction is forward biased, it allows current to flow easily, effectively lowering the barrier for carrier movement; when reverse biased, the junction inhibits carrier flow. The biasing condition of each junction is key to determining the overall behavior of the transistor, such as whether it is in a non-conducting (cutoff), conducting (active or saturation), or reverse-active state.

BJT Operating Modes

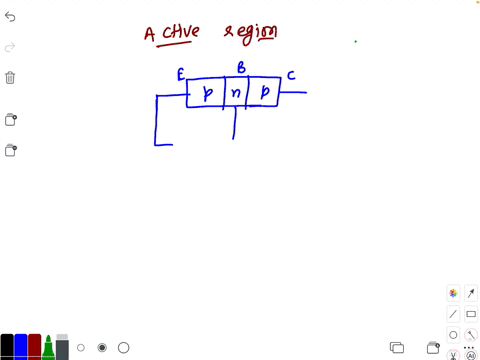

The operating mode of a BJT is determined by the biasing of its junctions. In the cutoff mode, both junctions are reverse biased, resulting in minimal conduction. In saturation, both junctions are forward biased, leading to maximum conduction with a low voltage drop across the device. The active mode typically involves a forward-biased emitter-base junction and a reverse-biased collector-base junction, allowing controlled amplification of current. In contrast, the reverse-active mode occurs when the roles of the emitter and collector are swapped, with corresponding changes in the biasing of the junctions and significantly reduced device performance.

Proper Transistor Symbols in Circuit Diagrams

Accurate representation of transistor devices in circuit diagrams requires the use of standardized symbols that clearly denote the type of transistor—NPN or PNP—and the direction of current flow. These symbols include arrows indicating the direction of conventional current flow for the emitter and ensure consistency in communication among engineers and technicians. Redrawing circuits with the proper transistor symbols enhances clarity and aids in the correct interpretation of the circuit’s function, particularly when analyzing biasing and operating modes.
