Find (a) the equivalent resistance of the circuit in Figure...

Name: Problem 54, Chapter 28: Physics for Scientists and Engineers with Modern Physics
Uploaded: 2020-09-14T12:46:09-08:00
Duration: 10 min 38 s
Channel: Sheh Lit Chang
Description: Find (a) the equivalent resistance of the circuit in Figure P28.54, (b) the potential difference across each resistor, (c) each current indicated in Figure P28.54, and (d) the power delivered to each resistor.

Find (a) the equivalent resistance of the circuit in Figure P28.54, (b) the potential difference across each resistor, (c) each current indicated in Figure P28.54, and (d) the power delivered to each resistor.

Key Concepts

Series and Parallel Resistors

In circuit analysis, determining how resistors are connected is crucial because resistors in series add directly to give a total resistance, while resistors in parallel have a combined resistance determined by the reciprocal of the sum of reciprocals. This concept is fundamental in simplifying complex circuits into equivalent resistances for analysis.

Equivalent Resistance

The equivalent resistance is a single resistance that can replace an entire resistor network without changing the current or voltage characteristics of the circuit. Calculating it involves identifying series and parallel combinations in the network and using the appropriate formulas to combine their resistances.

Ohm's Law

Ohm's Law, expressed as V = IR, relates the voltage across a resistor to the current flowing through it and its resistance. It is the basic principle used to calculate unknown quantities in a circuit once the equivalent resistance is known.

Kirchhoff's Circuit Laws

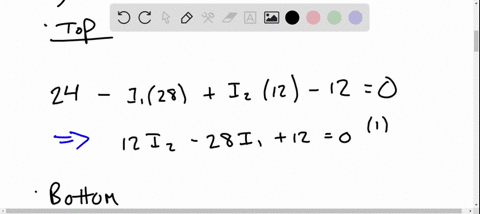

Kirchhoff's Voltage Law (KVL) and Kirchhoff's Current Law (KCL) are essential for analyzing circuits. KVL states that the sum of voltages around any closed loop in a circuit must equal zero, while KCL states that the total current entering a junction must equal the total current leaving it. These laws help in understanding the distribution of voltages and currents in different parts of the circuit.

Power in Electric Circuits

The power delivered to or dissipated by a resistor can be calculated using formulas like P = IV, P = I^2R, or P = V^2/R. This concept is important for determining how energy is distributed within a circuit and ensuring the safe and efficient design of electrical systems.
