For a particular R L C series circuit, the capacitive reactance is 12.0 Ω, the inductive reactan

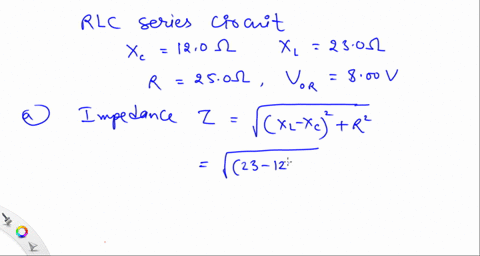

step 1 We have z equals r squared plus xl minus xc square equals 25 square plus 23 minus 12 square root

For a particular R L C series circuit, the capacitive...

For a particular $R L C$ series circuit, the capacitive reactance is $12.0 \Omega,$ the inductive reactance is $23.0 \Omega,$ and the maximum voltage across the $25.0-\Omega$ resistor is $8.00 \mathrm{V}$ (a) What is the impedance of the circuit? (b) What is the maximum voltage across this circuit?

For a particular $R L C$ series circuit, the capacitive reactance is $12.0 \Omega,$ the inductive reactance is $23.0 \Omega,$ and the maximum voltage across the $25.0-\Omega$ resistor is $8.00 \mathrm{V}$
(a) What is the impedance of the circuit?
(b) What is the maximum voltage across this circuit?

Key Concepts

Phasor Representation

Phasors are a mathematical tool used to represent sinusoidally varying voltages and currents as complex numbers in the frequency domain. This representation simplifies the analysis of AC circuits by converting differential equations into algebraic equations, enabling easy calculation of magnitudes and phase relationships.

Voltage Division in AC Circuits

Voltage division in AC circuits refers to the method of determining the voltage drop across individual components based on their impedance relative to the total circuit impedance. This principle is used to calculate the maximum voltage across specific circuit elements given the overall impedance.

Capacitive Reactance

Capacitive reactance is the opposition offered by a capacitor to the change in voltage in an AC circuit. It is inversely proportional to the frequency of the AC signal and the capacitance, causing the current to lead the voltage in phase.

AC Circuit Analysis

This concept involves understanding circuits that operate with alternating current (AC), where voltage and current vary sinusoidally with time. Analysis of AC circuits requires consideration of not only resistance, but also the reactive effects due to capacitors and inductors, which introduce phase shifts between voltage and current.

Impedance

Impedance is the total opposition a circuit presents to the flow of AC, combining both resistive (real) and reactive (imaginary) components. In series circuits, the magnitude of the impedance is found by combining the resistor and the net reactance—derived from both the inductive and capacitive reactances—using the Pythagorean theorem.

Inductive Reactance

Inductive reactance is the opposition to the change in current provided by an inductor in an AC circuit. It is directly proportional to both the frequency of the AC signal and the inductance, resulting in a phase difference where the current lags behind the voltage.
