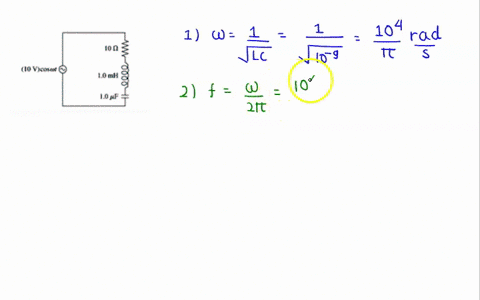

For the circuit of FIGURE P36.51,
a. What is the resonance frequency, in both rad/s and Hz?
b. Find $V_{R}$ and $V_{C}$ at resonance.
c. How can $V_{\mathrm{C}}$ be larger than $\mathcal{E}_{0}$ ? Explain.
(FIGURE CANNOT COPY)

Key Concepts

Resonance in RLC Circuits

Resonance occurs in RLC circuits when the reactances of the inductor and capacitor are equal in magnitude but opposite in phase, so that they cancel each other out. This results in the circuit exhibiting minimal impedance (for series configurations) and allows the current to reach a maximum at the resonant frequency. It is a fundamental principle in AC circuit analysis that helps in designing filters, oscillators, and tuning circuits.

Resonant Frequency Calculation

The resonant frequency of an RLC circuit is determined solely by the inductance (L) and capacitance (C) and is given by the formula ? = 1/?(LC) in radians per second. Converting this to cycles per second (Hz) involves dividing by 2?, resulting in f = 1/(2??(LC)). This calculation is essential since it identifies the frequency at which the circuit will naturally oscillate and achieve resonance.

Voltage Distribution at Resonance

At resonance in a series RLC circuit, while the net reactive impedance is zero, the voltage drops across individual components, particularly the resistor, capacitor, and inductor, behave differently. The resistor typically drops a voltage equal to the source voltage because it is the only element dissipating energy, while the capacitor and inductor can have much larger individual voltage drops due to energy being alternately stored and released in the reactive elements.

Voltage Magnification in Reactive Components

Voltage magnification is the phenomenon where the voltage across the reactive elements (capacitor or inductor) can exceed the applied source voltage, despite the net voltage around the circuit equaling the source voltage. This occurs because, at resonance, energy is continuously exchanged between the inductor and capacitor, leading to sizable instantaneous voltages across each component. The magnified voltages are a result of their large reactances compared to the circuit’s resistance, particularly in high-Q circuits, and do not violate the principles of energy conservation.
