For the circuit of FIGURE P36.50. a. What is the resonance...

For the circuit of FIGURE P36.50.

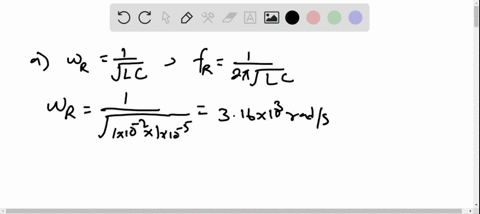

a. What is the resonance frequency, in both rad/s and Hz?
b. Find $V_{R}$ and $V_{L}$ at resonance.
c. How can $V_{\mathrm{L}}$ be larger than $\mathcal{E}_{0}$ ? Explain.
(FIGURE CANNOT COPY)

Key Concepts

Resonance in RLC Circuits

Resonance in an RLC circuit occurs when the inductive reactance equals the capacitive reactance, resulting in their mutual cancellation. At this frequency the circuit’s impedance is minimized (in the case of a series circuit) or maximized (in the case of a parallel circuit), and the current or voltage response is at an extreme. This condition is fundamental in AC circuit analysis as it leads to distinctive circuit behavior and is the basis for many tuning and filtering applications.

Resonance Frequency Calculation

The resonance frequency is determined by the relationship between the inductance (L) and the capacitance (C) in the circuit. In a series or parallel RLC circuit, the angular resonance frequency is given by ?? = 1/?(LC) and can be converted to the ordinary frequency by f? = ??/(2?). This calculation is critical for designing circuits that operate at a specific frequency or for understanding the frequency response of a circuit.

AC Circuit Impedance and Voltage Distribution

In AC circuits, each component (resistor, inductor, and capacitor) contributes to the overall impedance, with resistors providing a real impedance and inductors/capacitors providing imaginary impedances that vary with frequency. At resonance, the reactive impedances cancel out, so the net impedance is determined solely by the resistor. This unique distribution of impedance influences how the applied voltage divides across the circuit elements, with the resistor typically bearing the applied voltage drop and the reactive components experiencing voltage drops that can be much larger in magnitude.

Voltage Magnification in Resonant Circuits

Although the overall voltage applied to a resonant circuit is fixed, the individual reactive components, like inductors or capacitors, can exhibit voltages that exceed the source voltage. This occurs because energy is stored and exchanged between the magnetic field of the inductor and the electric field of the capacitor. At resonance, even with a low net impedance, this energy exchange can result in significant voltage magnification across these reactive elements. Understanding this phenomenon is important for both the design and safety considerations in high-frequency circuits.
