For the potential-energy diagram in Figure P 10.52, what is the maximum speed of a 2.0 g particl

For the potential-energy diagram in Figure P 10.52, what is...

Key Concepts

Turning Points

Turning points in the context of potential energy diagrams are positions where the total energy equals the potential energy, resulting in zero kinetic energy. These points define the boundaries of the particle's oscillatory motion. Understanding turning points is crucial to determining the amplitude of oscillation and analyzing where maximum speed occurs within the cycle.

Oscillatory Motion

Oscillatory motion refers to the repetitive back-and-forth movement of a particle around an equilibrium position. In the context of a potential energy diagram, the particle’s motion is confined between turning points where its kinetic energy momentarily becomes zero, and it reaches maximum speed as it moves through regions of lower potential energy.

Potential Energy Diagrams

Potential energy diagrams graphically represent the energy landscape in which a particle moves, showing how potential energy varies with position. They allow one to visualize regions where the kinetic energy is high or low based on the given total energy, and they highlight equilibrium points and potential barriers which are essential for understanding particle dynamics.

Conservation of Energy

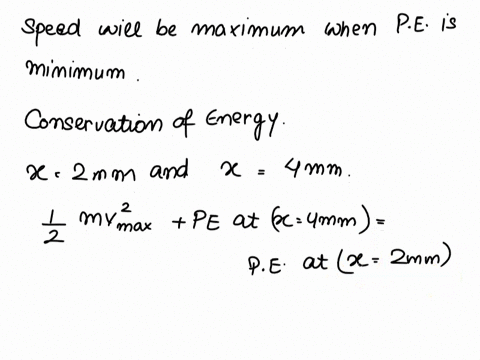

The energy conservation principle is fundamental to analyzing oscillatory motion. It states that the total mechanical energy—comprising kinetic and potential energies—remains constant in the absence of non-conservative forces. This concept is used to calculate the maximum speed of a particle by equating the difference between total energy and potential energy to its kinetic energy.

Transcript

00:02 Okay, in this problem we've got a potential energy curve and i'm just going to draw it real quick right here we've got two four six and eight millimeters and we've got one two three four five jules and potential energy curve goes from we know it's five jules at two and eight and one jewel at four and four and and so our curve looks something like that.

00:40 And the question tells us that the particle oscillates between this point and this point, from 2 millimeters to 8 millimeters.

00:52 And the question is asking if that's true, what is the maximum velocity? how i like to think about these potential energy curves or something oscillating is it doesn't matter if it's a spring or some other system.

01:05 Once i draw the diagram, i can kind of picture a ball.

01:09 And if i put a ball here and let go, it would roll down the ramp and then back up the ramp, and then turn around, roll down the ramp, and back up.

01:18 And it would oscillate back and forth between those two points.

01:22 And so when it gets to this level here, this five joules level, it has to come to a stop.

01:28 And again, it doesn't have to be a ball, but i can visualize it as a ball.

01:32 And so right there, i know that my potential energy is 5 joules, but i also know that my kinetic energy is 0 joules.

01:41 And so my velocity at that point is also 0 meters per second.

01:47 And so with that, i know that my total energy has to equal my potential energy at that point, which is 5 joules.

01:57 I also know that because my total energy is 5 joules, i can't get any further left than 2.

02:02 Or any further right than 8 because i don't have the energy to get that...
