(II) (a) What is the minimum cross-sectional area required...

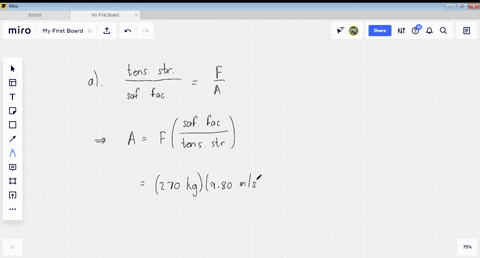

(II) $(a)$ What is the minimum cross-sectional area required of a vertical steel cable from which is suspended a 320 -kg chandelier? Assume a safety factor of 7.0$(b)$ If the cable is 7.5 $\mathrm{m}$ long, how much does it elongate?

Key Concepts

Stress

Stress is the force applied per unit area within materials. It is a fundamental concept in mechanics of materials that determines whether a material can withstand applied loads without failing. In problems like this, the tensile stress in the cable is compared against the material's strength, and the cross-sectional area is adjusted so that the stress remains below a safe limit.

Safety Factor

A safety factor is a design parameter used to ensure that a structure or component is capable of withstanding loads beyond the expected maximum load. It provides a margin of safety against uncertainties in material properties, unexpected loads, or flaws in construction by effectively reducing the maximum allowable stress through a multiplier.

Young's Modulus

Young's Modulus is a measure of a material's stiffness, defined as the ratio of stress to strain within the elastic limit. It predicts how much a material will elastically deform under a given load. In the context of cable elongation, it is used along with the applied stress and cable length to determine the amount of stretch using the linear relationship described by Hooke's Law.

Strain and Hooke's Law

Strain is the measure of deformation representing the fractional change in shape or size of an object when a stress is applied. Hooke's Law states that, for elastic deformations, the stress and strain in a material are directly proportional. This law is used to calculate the elongation of a material by relating the applied stress to the strain via Young's modulus.
