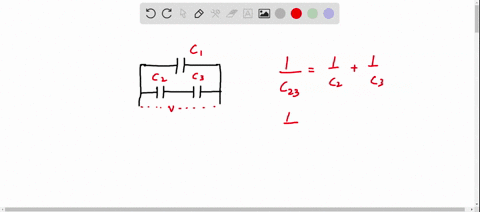

(II) In Fig. 19-53 , if C1=C2=2 C3=22.6 μF , how much charge is stored on each capacitor when V=

step 1 charge stored on a capacitor is equal to capacitance of that capacitor times the voltage across

(II) In Fig. 19-53 , if C1=C2=2 C3=22.6 μF , how much charge...

Key Concepts

Capacitor Fundamentals

Capacitors are electrical components that store energy in an electric field, and their ability to store charge is determined by their capacitance. The basic relation Q = CV, where Q is the stored charge, C is the capacitance, and V is the voltage across the capacitor, is fundamental to analyzing capacitor circuits.

Series Capacitor Configuration

When capacitors are connected in series, the same charge flows through each capacitor even though the voltage drop across each may vary. In series circuits, the total voltage is the sum of the individual voltage drops, and the reciprocal of the equivalent capacitance is the sum of the reciprocals of the individual capacitances.

Parallel Capacitor Configuration

In a parallel capacitor arrangement, all capacitors experience the same voltage across them while the total stored charge is the sum of the charges stored on each capacitor. The equivalent capacitance in a parallel configuration is the sum of the individual capacitances, which affects how the overall energy is distributed in the network.

Equivalent Capacitance Calculation

Calculating the equivalent capacitance of complex networks involves reducing combinations of capacitors arranged in series and parallel into a single capacitance value. This simplification is essential for determining the distribution of voltage and charge within the circuit using the relationship Q = CV for each capacitor.
