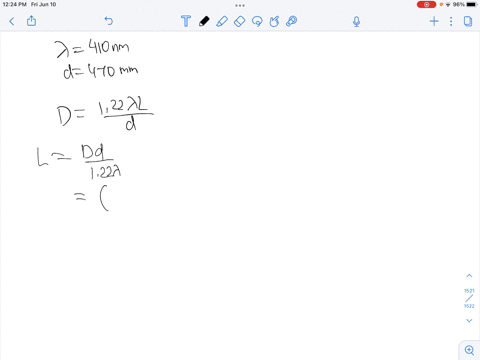

Impressionist painter Georges Seurat created paintings with an enormous number of dots of pure pigment, each of which was approximately $2.00 \mathrm{mm}$ in diameter. The idea was to have colors such as red and green next to each other to form a scintillating canvas, such as in his masterpiece, $A$ Sunday Afternoon on the Island of La Grande Jatte (Fig. $\mathrm{P} 27.37$ ). Assume $\lambda=500 \mathrm{nm}$ and a pupil diameter of $5.00 \mathrm{mm} .$ Beyond what distance would a viewer be unable to discern individual dots on the canvas?

Key Concepts

Diffraction Limit

The diffraction limit is a fundamental principle that sets a boundary on the resolution of optical systems. It dictates that even a perfect lens cannot focus light to an infinitely small point due to the wave nature of light. This limit defines the smallest detail that can be resolved by any imaging system, including the human eye, when light diffracts through small apertures.

Rayleigh Criterion

The Rayleigh criterion is a rule of thumb used to determine the minimum resolvable detail in an optical system. It specifies that two point sources are just resolvable when the central maximum of one diffraction pattern coincides with the first minimum of the other. This criterion provides a mathematical relation using the wavelength of light and the aperture size to quantify the angular resolution.

Angular Resolution

Angular resolution refers to the smallest angle between two points of light that can be distinguished by an optical system. It is a measure of the system’s ability to separate small details in its field of view, and for the human eye, it can be estimated by the ratio of the wavelength of light to the diameter of the pupil, modified by factors provided by the diffraction theory such as in the Rayleigh criterion.

Small Angle Approximation

The small angle approximation is a mathematical simplification used when the angle of interest is very small (in radians). It approximates the sine of the angle as being equal to the angle itself, which simplifies calculations in optics by establishing a linear relationship between the linear size of an object and its angular size. This is particularly useful in estimating distances where details become unresolved due to limited angular resolution.
