In a binary vapour cycle, (a) mercury is used in the...

In a binary vapour cycle,
(a) mercury is used in the bottoming cycle
(b) steam is used in the topping cycle
(c) mercury is used in the topping cycle
(d) either mercury or steam may be used in the topping cycle.

Key Concepts

Topping and Bottoming Cycles

In combined cycle power plants, the topping cycle is the first stage that operates at the highest temperature of the available heat, converting a significant portion of the energy into work. The residual heat is then utilized by the bottoming cycle, which operates at a lower temperature. This staged approach helps to maximize the efficiency of the energy conversion process.

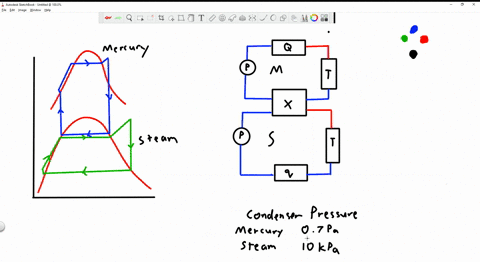

Binary Vapor Cycle

A binary vapor cycle is a thermodynamic process used in power generation that employs two separate working fluids with different properties to extract energy from a heat source over different temperature ranges. Typically, one cycle operates at higher temperatures (topping cycle) and the other at lower temperatures (bottoming cycle), thereby increasing the overall efficiency of the system.

Working Fluids

Working fluids are substances chosen for their specific thermodynamic properties such as boiling point, latent heat of vaporization, and critical temperature. In binary vapor cycles, the fluids are selected so that one is better suited for high-temperature operation (maximizing work extraction) while the other is more appropriate for low-temperature heat rejection.

Thermodynamic Properties of Specific Fluids

Different fluids, such as mercury and steam, have distinct thermodynamic properties that make them suitable for different roles within a binary cycle. For instance, mercury’s properties may make it favorable for the high-temperature topping cycle because its boiling temperature and heat transfer characteristics allow it to efficiently convert high-grade heat into work, whereas steam is generally used where lower temperature operation is required.
