In Fig. 12-42, what magnitude of (constant) force F⃗ applied horizontally at the axle of the whe

step 1 For this problem on the topic of equilibrium and elasticity, we're told that a constant force is

In Fig. 12-42, what magnitude of (constant) force F⃗ applied...

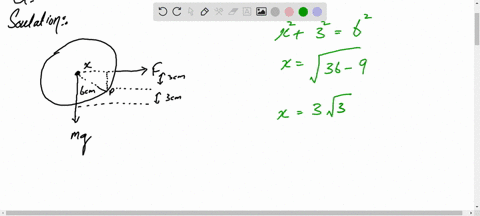

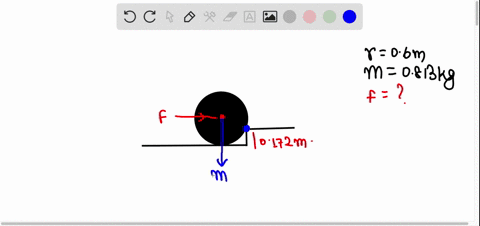

In Fig. $12-42,$ what magnitude of (constant) force $\vec{F}$ applied horizontally at the axle of the wheel is necessary to raise the wheel
over a step obstacle of height $h=3.00 \mathrm{cm} ?$ The wheel's radius is $r=$
$6.00 \mathrm{cm},$ and its mass is $m=0.800 \mathrm{kg} .$

Key Concepts

Center of Mass

The center of mass of an object is the effective point where its mass is concentrated and where gravitational force can be considered to act. In the context of overcoming a step, the weight of the wheel acting through the center of mass creates a gravitational torque about the pivot, which must be countered by the applied force.

Geometric Considerations in Mechanics

The geometry of the system, including the dimensions of the wheel and the height of the obstacle, is crucial in determining the lengths of the lever arms and the angles at which forces act. This geometrical analysis allows for the correct resolution of forces and moments, thereby enabling the computation of the required magnitude of the force to overcome the step.

Static Equilibrium Conditions

The concept of static equilibrium involves conditions where the net force and net torque acting on a body are zero. For a wheel climbing over an obstacle, setting the sum of torques equal to zero at the threshold of motion helps determine the minimum force necessary to initiate rotation and lift the wheel.

Pivot Point Analysis

The pivot point is the point about which the body rotates—in problems of tipping or climbing steps, it is usually at the edge of the obstacle. By analyzing moments about the pivot point, the reaction forces at that point can be ignored, allowing a simpler balance of the moments produced by the applied force and gravitational force.

Torque and Moment Arms

Torque is the rotational effect produced by a force applied at a distance from a pivot point. It is calculated as the product of the force and its lever arm, which is the perpendicular distance from the pivot to the line of action of the force. In this type of problem, the applied force generates a torque that needs to overcome the opposing gravitational torque in order to rotate the wheel over the obstacle.
