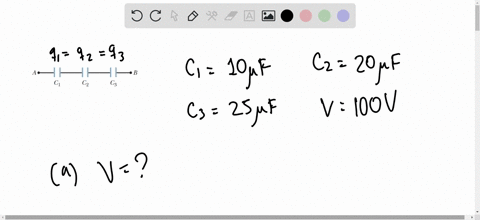

In Fig. 25-45, C1=10.0 μF, C2=20.0 μF, and C3= 25.0μF . If no capacitor can withstand a potent

step 1 For part A of the problem, with 100 volts across 10 micro -ferrod, then the voltage across 20 mi

In Fig. 25-45, C1=10.0 μF, C2=20.0 μF, and C3= 25.0μF . If...

In Fig. $25-45, C_{1}=10.0$ $\mu \mathrm{F}, \quad C_{2}=20.0 \mu \mathrm{F},$ and $C_{3}=$ 25.0$\mu \mathrm{F} .$ If no capacitor $\mathrm{can}$ withstand a potential difference of more than 100 $\mathrm{V}$ without failure, what are (a) the magnitude of the maximum potential difference that can exist between points $A$ and $B$ and (b) the maximum energy that can be stored in the three-capacitor arrangement?

In Fig. $25-45, C_{1}=10.0$ $\mu \mathrm{F}, \quad C_{2}=20.0 \mu \mathrm{F},$ and $C_{3}=$
25.0$\mu \mathrm{F} .$ If no capacitor $\mathrm{can}$ withstand a potential difference of more than 100 $\mathrm{V}$ without failure, what are (a) the magnitude of the maximum potential difference that can exist between points $A$ and $B$ and (b) the maximum energy that can be stored in
the three-capacitor arrangement?

Key Concepts

Equivalent Capacitance

This concept involves replacing a complex network of capacitors with a single capacitor that has the same electrical effect on the circuit. When capacitors are connected in series, their reciprocal capacitances add up, while in parallel, their capacitances add together directly. Determining the equivalent capacitance simplifies the analysis, especially when evaluating the overall potential difference or energy storage of a capacitor network.

Voltage Division

Voltage division in capacitor circuits refers to the way the total applied voltage is distributed across individual capacitors in a series arrangement. In a series configuration, the voltage drop across each capacitor is inversely proportional to its capacitance, meaning that a capacitor with a lower capacitance will experience a higher voltage drop. This principle is essential to ensure that the voltage across any one capacitor does not exceed its maximum rating.

Energy Storage in Capacitors

This concept is about how capacitors store energy in an electric field, where the energy stored (in joules) is given by the formula ½CV². In a system of capacitors, once the equivalent capacitance is known, this formula can be applied to determine the total energy stored for a given applied voltage. It is a key parameter in circuit design, especially in applications requiring energy management or pulsed power.

Voltage Rating Constraints

Voltage rating is the maximum potential difference that a capacitor can withstand without failure or breakdown. In circuit design, it is crucial to ensure that none of the individual capacitors are exposed to voltages exceeding their rated limit. This constraint directly influences the maximum allowable applied voltage in a capacitor network and must be considered to prevent electrical failures and ensure safe operation of the circuit.
