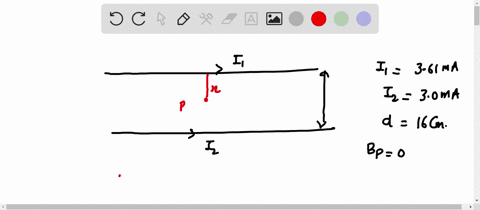

In Fig. $29-43,$ two long straight wires at separation $d=16.0 \mathrm{cm}$ carry currents $i_{1}=3.61 \mathrm{m} \mathrm{A}$ and $i_{2}=3.00 i_{1}$ out of the page. (a) Where on the $x$ axis is the net magnetic field equal to zero? (b) If the two currents are doubled, is the zero-field point shifted toward wire $1,$ shifted toward wire $2,$ or unchanged?

In Fig. $29-43,$ two long straight wires at separation $d=16.0 \mathrm{cm}$ carry
currents $i_{1}=3.61 \mathrm{m} \mathrm{A}$ and $i_{2}=3.00 i_{1}$
out of the page. (a) Where on the $x$ axis
is the net magnetic field equal to zero?
(b) If the two currents are doubled, is
the zero-field point shifted toward wire
$1,$ shifted toward wire $2,$ or unchanged?

Key Concepts

Magnetic Field from a Long Straight Wire

A long straight current-carrying wire produces a magnetic field whose magnitude can be calculated using the formula B = ?? i/(2?r), where i is the current and r is the distance from the wire. This formula is fundamental in understanding how magnetic fields are generated around conductors and is applicable in many electromagnetic scenarios.

Superposition Principle for Magnetic Fields

In electromagnetism, the superposition principle states that when multiple magnetic fields are present, the net magnetic field at any point is the vector sum of individual fields produced by each source. This concept is essential when analyzing systems with more than one current-carrying wire, allowing for the determination of points where the fields may partially or completely cancel.

Spatial Dependence of Magnetic Fields

The magnetic field from a wire diminishes with distance, following an inverse relationship (B ? 1/r). Understanding this spatial behavior is critical when calculating the contribution of each wire at different points in space, particularly in determining the conditions for field cancellation.

Effect of Proportional Changes in Current

When all currents in a system are increased or decreased by the same factor, the ratios of the magnetic fields from the individual wires remain unchanged. This means that the relative positions of features such as the zero-field point will not shift if the currents are scaled proportionally, as the balance of the fields is maintained.
