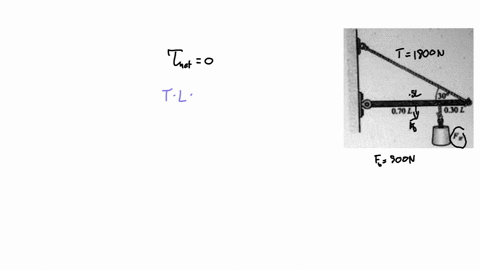

In Fig. 5-23, the uniform horizontal beam weighs 500 N. If...

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Static Equilibrium

Static equilibrium is a fundamental concept in mechanics where a system remains at rest because the sum of all forces and moments (torques) acting on it equals zero. This principle is used to analyze structures and beams to ensure that they do not translate or rotate, providing a basis for determining unknown forces or loads acting on the system.

Moment (Torque) Balance

The balance of moments, or torque equilibrium, requires that the sum of all moments around any pivot point is zero. This concept is crucial in problems involving beams and levers as it allows one to set up equations that account for the rotational effect of forces at varying distances from a chosen point, helping in determining how different loads affect the system's stability.

Distributed and Concentrated Loads

Understanding the difference between distributed loads and concentrated loads is key in structural analysis. Distributed loads, such as the weight of a uniform beam, spread their force continuously over a length, while concentrated loads act at a specific point. Properly accounting for these types of loads is essential for accurately calculating resultant forces and moments, which in turn informs the determination of maximum allowable loads.
