Question

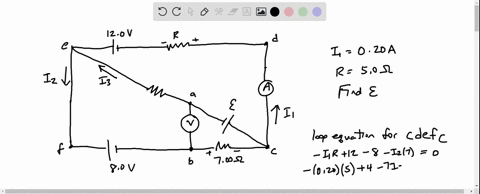

In the circuit in Fig. $29-5, I_{1}=0.20 \mathrm{~A}$ and $R=5.0 \Omega .$ Find $\mathscr{E}$.We write the loop equation for loop cdefc:$$-R I_{1}+12.0-8.0-7.0 I_{2}=0 \quad \text { or } \quad-(5.0)(0.20)+12.0-8.0-7.0 I_{2}=0$$from which $I_{2}=0.43$ A. We can now find $I_{3}$ by applying the node rule at $e$ :$$I_{1}+I_{3}=I_{2} \quad \text { or } \quad I_{3}=I_{2}-I_{1}=0.23 \mathrm{~A}$$Now apply the loop rule to loop cdeac:$$-(5.0)(0.20)+12.0+(2.0)(0.23)+\mathscr{E}=0$$from which $\mathscr{E}=-11.5 \mathrm{~V}$. The minus sign tells us that the polarity of the battery is actually the reverse of that shown.
Step 1
The loop rule states that the sum of the potential differences (voltages) around any closed loop or mesh in a network is always equal to zero. This gives us the equation: \[ -R I_{1}+12.0-8.0-7.0 I_{2}=0 \quad \text { or } \quad-(5.0)(0.20)+12.0-8.0-7.0 Show more…
Show all steps
Your feedback will help us improve your experience
Sikandar Baig and 89 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
In the circuit in Fig. 29-5, $I_{1}=0.20 \mathrm{~A}$ and $R=5.0 \Omega$. Find $\varepsilon$. We write the loop equation for loop cdefc: $$ -R I_{1}+12.0-8.0-7.0 I_{2}=0 \quad \text { or } \quad-(5.0)(0.20)+12.0-8.0-7.0 I_{2}=0 $$ from which $I_{2}=0.43$ A. We can now find $I_{3}$ by applying the node rule at $e$ : $$ I_{1}+I_{3}=I_{2} \quad \text { or } \quad I_{3}=I_{2}-I_{1}=0.23 \mathrm{~A} $$ Now apply the loop rule to loop cdeac: $$ -(5.0)(0.20)+12.0+(2.0)(0.23)+\varepsilon=0 $$ from which $\varepsilon=-11.5 \mathrm{~V}$. The minus sign tells us that the polarity of the battery is actually the reverse of that shown.

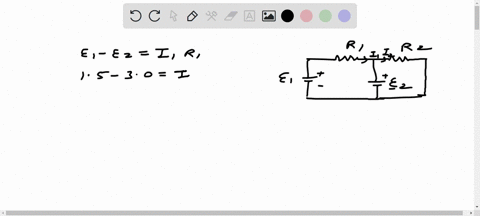

Assume the resistance values are $R_{1}=2400 \Omega, R_{2}=1400 \Omega, R_{3}=4500 \Omega,$ and $R_{4}=6000 \Omega,$ and the battery emfs are $\varepsilon_{1}=1.5 \mathrm{V}$ and $\varepsilon_{2}=3.0 \mathrm{V},$ unless stated otherwise. Use Kirchhoff's rules to analyze the circuit in Figure $\mathrm{P} 19.53$ a. Let $I_{1}$ be the branch current through $R_{1}$ and $I_{2}$ be the branch current through $R_{2}$. Write Kirchhoff's loop rule relation for a loop that travels through battery $1,$ resistor 1 , and battery 2 b. Write Kirchhoff's loop rule relation for a loop that travels through battery 2 and resistor 2 c. You should now have two equations and two unknowns $\left(I_{1} \text { and } I_{2}\right)$ Solve for the two branch currents.
Electric Currents and Circuits
DC Circuits: Batteries, Resistors, and Kirchhoff’s Rules

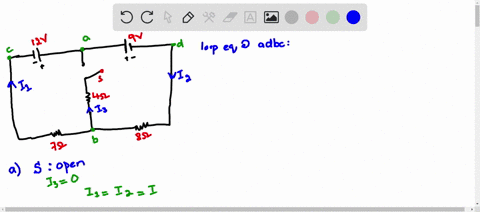

For the circuit shown in Fig. 29-2, find $I_{1}, I_{2}$, and $I_{3}$ if switch $S$ is $(a)$ open and $(b)$ closed. (a) When $S$ is open, $I_{3}=0$, because no current can flow through the middle branch. Applying the node rule to point $-a$ $$ I_{1}+I_{3}=I_{2} \quad \text { or } \quad I_{2}=I_{1}+0=I_{1} $$ Applying the loop rule to the outer loop acbda yields $$ -12.0+7.0 I_{1}+8.0 I_{2}+9.0=0 $$ To understand the use of signs, remember that current always flows from high to low potential through a resistor. Because $I_{2}=I_{1}$, Eq. (1) becomes $$ \begin{array}{lll} 15.0 I_{1}=3.0 & \text { or } & I_{1}=0.20 \mathrm{~A} \end{array} $$ Also, $I_{2}=I_{1}=0.20 \mathrm{~A}$. Notice that this is the same result that one would obtain by replacing the two batteries by a single $3.0$ - $\mathrm{V}$ battery. (b) With $S$ closed, $I_{3}$ is no longer necessarily zero. Applying the node rule to point- $a$ gives $$ I_{1}+I_{3}=I_{2} $$ Applying the loop rule to loop acba $$ -12.0+7.01 I_{1}-4.0 I_{3}=0 $$ and to loop adba gives $$ -9.0-8.0 I_{2}-4.0 I_{3}=0 $$ Applying the loop rule to the remaining loop, acbda, would yield a redundant equation, because it would contain no new voltage change. Now solve Eqs. (2), (3), and (4) for $I_{1}, I_{2}$, and $I_{3}$. From Eq. (4), $$ I_{3}=-2.0 I_{2}-2.25 $$ Substituting this in Eq. (3) yields $$ -12.0+7.0 I_{1}+9.0+8.0 I_{2}=0 \quad \text { or } \quad 7.0 I_{1}+8.0 I_{2}=3.0 $$ Substituting for $I_{3}$ in Eq. (2) also gives $$ \begin{array}{lll} I_{1}-2.0 I_{2}-2.25-I_{2} & \text { or } & I_{1}=3.0 I_{2}+2.25 \end{array} $$ Substituting this value in the previous equation finally leads to $$ 21.0 I_{2}+15.75+8.0 I_{2}=3.0 \quad \text { or } \quad I_{2}=-0.44 \mathrm{~A} $$ Using this in the equation for $I_{1}$, $$ I_{1}=3.0(-0.44)+2.25=-1.32+2.25=0.93 \mathrm{~A} $$ Notice that the minus sign is a part of the value we have found for $I_{2}$. It must be carried along with its numerical value. Now use (2) to find $$ I_{3}=I_{2}-I_{1}=(-0.44)-0.93=-1.37 \mathrm{~A} $$
