In the circuit in Fig. 𝐄 25.47, find (a) the rate of conversion of internal (chemical) energy to

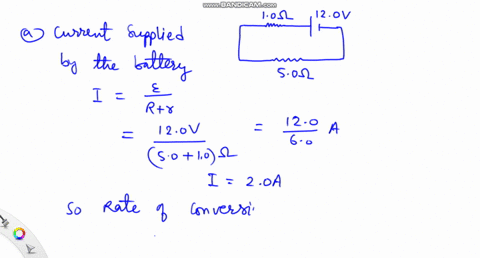

step 1 Well, this question will determine the current in the circuit first. The current in the circuits

In the circuit in Fig. 𝐄 25.47, find (a) the rate of...

In the circuit in Fig. $\mathbf{E} 25.47,$ find (a) the rate of conversion of internal (chemical) energy to electrical energy within the battery; (b) the rate of dissipation of electrical energy in the battery; (c) the rate of dissipation of electrical energy in the external resistor.

Key Concepts

Battery Energy Conversion

This concept refers to the process by which a battery converts stored chemical energy into electrical energy. The rate of this conversion is typically quantified as the product of the electromotive force (emf) of the battery and the current it supplies. It emphasizes the battery’s role as an energy source that transforms stored energy into a useful form for driving a current in a circuit.

Internal Resistive Dissipation

This concept deals with the phenomenon of energy loss within the battery itself due to its inherent internal resistance. When current flows through the internal resistance, some of the electrical energy is converted into heat according to Joule’s law (I² times the internal resistance). This energy loss represents the inefficiency in the battery’s energy conversion process.

External Resistive Dissipation

This concept involves the dissipation of electrical energy as heat in an external resistor connected to the circuit. The power loss in the external resistor is calculated using Joule’s law (I² multiplied by the resistance), and it represents the energy that is not converted into work but is instead lost due to the resistive properties of the circuit.

Energy Conservation in Electric Circuits

This overarching principle ensures that the total energy produced by a power source, like a battery, is equal to the sum of the energy delivered to the external load and the energy dissipated internally. It provides a critical framework for analyzing how power is distributed and lost within an electrical circuit, underscoring the importance of accounting for all energy conversions and losses.
