In the circuit of Fig. 30-27, determine the current in each...

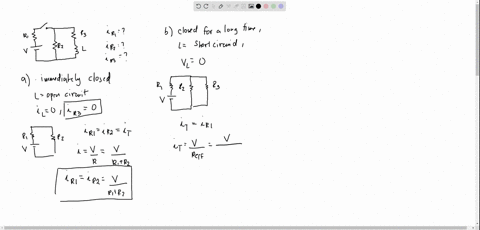

In the circuit of Fig. $30-27,$ determine the current in each resistor $\left(I_{1}, I_{2}, I_{3}\right)$ at the moment (a) the switch is closed, $(b)$ a long time after the switch is closed. After the switch has been closed for a long time, and then reopened, what is each current (c) just after it is opened, (d) after a long time?

Key Concepts

Kirchhoff’s Laws

Kirchhoff's Voltage Law (KVL) and Kirchhoff's Current Law (KCL) are essential principles in circuit analysis. They allow for the systematic calculation of currents and voltages in each branch of a circuit by ensuring conservation of energy and charge, particularly when analyzing the changes introduced by switching events.

Steady State Analysis

Steady state analysis involves examining the circuit behavior long after any switching event, when all transient effects have decayed and the circuit variables become constant. In this state, reactive components like capacitors or inductors are considered to have reached their final charging or current conditions, which simplifies the analysis using basic resistive network principles.

Transient Response

Transient response refers to the period when a circuit's variables (currents and voltages) are adjusting from one condition to another because of a switching event. During this time, the reactive components such as capacitors or inductors play a critical role until the circuit reaches its new equilibrium. The specific currents in the resistors change dynamically, governed by the natural time constants of the circuit.

Capacitor (and Inductor) Initial Conditions

A key concept in transient circuit analysis is that certain reactive components do not change their state instantaneously—capacitor voltages and inductor currents remain continuous at the moment of switching. This principle provides boundary conditions that are essential for analyzing both the immediate response ('just after switching') and subsequent long term behavior.
