Infinite sheet A carries a positive uniform charge density σ, and sheet B , which is to the righ

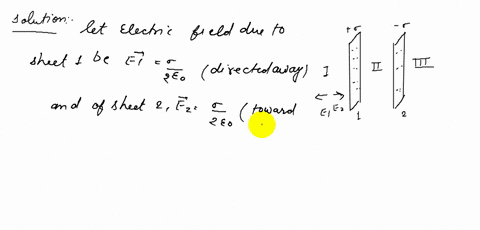

step 1 For problem 58, we are to sketch the electric field for this given configuration. You have plate

Infinite sheet A carries a positive uniform charge density...

Infinite sheet $A$ carries a positive uniform charge density $\sigma$ , and sheet $B$ , which is to the right of $A$ and parallel to it, carries a uniform negative charge density $-2 \sigma .$ (a) Sketch the electric field lines for this pair of sheets. Include the region between the sheets as well as the regions to the left of $A$ and to the right of $B$ . (b) Repeat part (a) for the case in which sheet $B$ carries a charge density of $+2 \sigma .$

Key Concepts

Infinite Charged Sheet

An infinite charged sheet is an idealized model used in electromagnetism where the sheet's dimensions are assumed to be infinite, leading to a uniform electric field that is independent of the distance from the sheet. This simplification is pivotal in understanding electric fields generated by large, flat surfaces, serving as a key concept in electrostatics.

Electric Field from a Uniformly Charged Surface

A uniformly charged surface creates an electric field of constant magnitude on either side of the sheet, derived using Gauss's law. This concept underpins the analysis of how electric fields behave in the presence of large, flat charge distributions, which is essential for predicting field behavior in various regions surrounding the sheet.

Superposition Principle

The superposition principle states that the net electric field resulting from multiple charge distributions is the vector sum of the fields created by each individual charge distribution. This principle is crucial when determining the overall electric field configuration in systems involving more than one charged object, such as multiple infinite sheets.

Electric Field Lines

Electric field lines are a graphical tool used to represent the direction and relative strength of the electric field. They originate from positive charges and terminate on negative charges (or extend to infinity in the absence of balancing charges), providing an intuitive way to visualize the influence of charge distributions on the surrounding space.
