Knowing that $M=5$ kip-in., determine the stress at $(a)$ point $A,(b)$ point $B$.
Step 1
The cross-sectional area is a rectangle with a width (b) of 1.5 inches and a height (h) of 3 inches. The moment of inertia for a rectangle is given by the formula: I = (b * h^3) / 12 Plugging in the values, we get: I = (1.5 * 3^3) / 12 = (1.5 * 27) / 12 = 40.5 Show more…
Show all steps
Your feedback will help us improve your experience
Surendra Kumar and 72 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

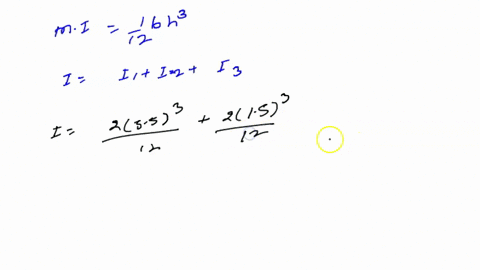

Knowing that the couple shown acts in a vertical plane, determine the stress at $(a)$ point $A$, $(b)$ point $B$.
The member has a circular cross section. If it is subjected to a moment of $M=5 \mathrm{kN} \cdot \mathrm{m}$, determine the stress at points $A$ and $B$. Is the stress at point $A^{\prime},$ which is located on the member near the wall, the same as that at $A$ ? Explain.
A vertical force $\mathbf{P}$ of magnitude 20 kips is applied at point $C$ located on the axis of symmetry of the cross section of a short column. Knowing that $y=5$ in., determine $(a)$ the stress at point $A,(b)$ the stress at point $B,(c)$ the location of the neutral axis.
