List the factors that impose limits on a MOSFET's region of safe operation. How would you expect

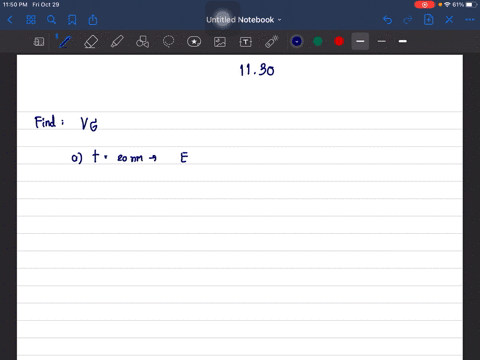

step 1 In this question we have to find the maximum oxide thickness necessary if the safety factor is e

List the factors that impose limits on a MOSFET's region of...

Key Concepts

Thermal Management

Thermal limits are imposed by the need to dissipate heat generated during device operation. The power dissipation capability of a MOSFET is a function of its size, packaging, and heat-sinking structure; larger devices or those with optimized thermal paths can manage higher currents and more power without exceeding temperature thresholds that could lead to failure.

Current Density and Electromigration

The maximum safe current through a MOSFET is limited by the current density that the semiconductor materials and metal interconnects can sustain without degradation, such as electromigration. The physical dimensions, particularly the channel width and the cross-sectional area of conductive paths, influence these limits, with larger structures generally able to carry higher currents safely.

Breakdown Voltage

This refers to the maximum voltage that the MOSFET's semiconductor junctions can tolerate before avalanche breakdown occurs. The breakdown voltage is determined by the doping profiles, junction depths, and the geometry of the device; larger or specially engineered structures can often handle higher voltages by providing a more gradual field distribution and thicker inactive regions to spread the electric field.

Gate Oxide Integrity

Gate oxide integrity is a key factor in MOSFET reliability, as the thin insulating oxide layer must prevent current leakage while withstanding high gate biases. The thickness and quality of this oxide layer, which are directly linked to the physical fabrication process and dimensions, set a limit on safe gate voltages and overall device longevity.

Avalanche Energy Handling

Under transient stress conditions, such as voltage spikes, the MOSFET may enter avalanche breakdown where it absorbs energy in a controlled manner. The ability to handle avalanche energy is related to the device’s physical structure and size, as larger devices often offer a greater capacity to dissipate this energy without suffering permanent damage.
