One side of a plant shelf is supported by a bracket mounted...

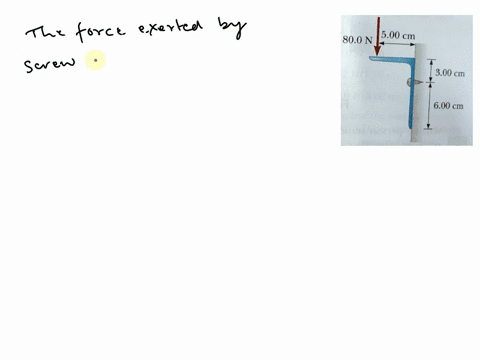

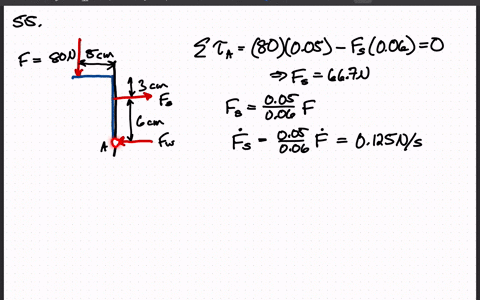

One side of a plant shelf is supported by a bracket mounted on a vertical wall by a single screw as shown in Figure P12.50. Ignore the weight of the bracket. (a) Find the horizontal component of the force that the screw exerts on the bracket when an 80.0 $\mathrm{N}$ vertical force is applied as shown. (b) As your grandfather waters his geraniums, the $80.0-\mathrm{N}$ load force is increasing at the rate 0.150 $\mathrm{N} / \mathrm{s}$ . At what rate is the force exerted by the screw changing? Suggestions: Imagine that the bracket is slightly loose. You can do parts (a) and (b) most efficiently if you call the load force $W$ and solve symbolically for the screw force $F .$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Static Equilibrium

In statics, a body is in static equilibrium when the sum of all forces and the sum of all moments (torques) acting on it are zero. This condition is used to solve problems by setting up equations where the forces or their moments cancel each other, ensuring that the system remains at rest.

Moment (Torque) Analysis

Torque is the product of a force and the distance from the point of rotation (lever arm) at which the force is applied. By balancing the torques about a point (often the pivot or support), it is possible to relate different forces acting on a body. This method is especially useful when one of the forces does not directly align with the primary axes of the support system.

Related Rates Calculations

Related rates problems involve determining how two or more quantities that are related by an equation change with respect to time. In mechanics, this approach is used to find how a change in one force or parameter influences another, by differentiating the equilibrium equations with respect to time.
