One technique for measuring the apex angle of a prism is...

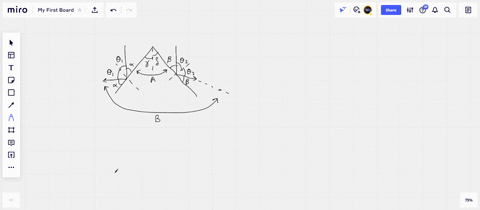

One technique for measuring the apex angle of a prism is shown in Figure P35.50. Two parallel rays of light are directed onto the apex of the prism so that the rays reflect the prism. The angular separation $\gamma$ of the two reflected rays can be measured. Show that $\phi=\frac{1}{2} \gamma$ .

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Prism Geometry

This refers to the study of the relationships and angles within a prism, particularly focusing on the apex angle, which is the angle between the two faces that reflect the light. Understanding prism geometry is essential for analyzing how incident light interacts with the prism surfaces.

Law of Reflection

The law of reflection, which states that the angle of incidence equals the angle of reflection, is fundamental in tracing the path of light rays as they reflect off surfaces. This principle is used to determine how the two incident parallel rays will change their direction after reflecting from the prism faces.

Angular Separation

Angular separation is the measurable angle between the two reflected rays. In the context of the prism, it is linked directly to the geometric configuration of the prism’s faces, and its measurement provides a way to relate the reflection paths to the prism’s apex angle.

Geometric Analysis in Optics

This concept involves using geometric reasoning and ray diagrams to derive relationships between different angles in an optical system. Here, geometric analysis is used to show that the prism’s apex angle is half of the measured angular separation between the reflected rays.
