Potassium iodide (KI) has the same crystalline structure as NaCl, with atomic planes separated b

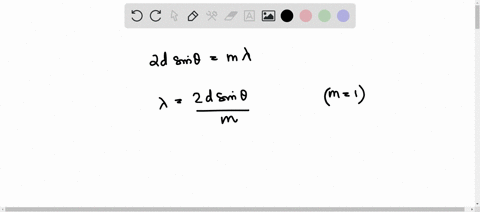

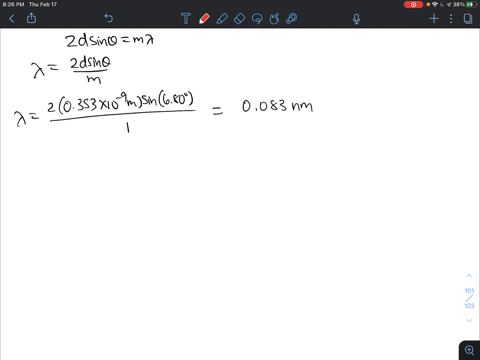

step 1 For this problem, we're going to use the formula 2 times the distance between the planes times s

Potassium iodide (KI) has the same crystalline structure as...

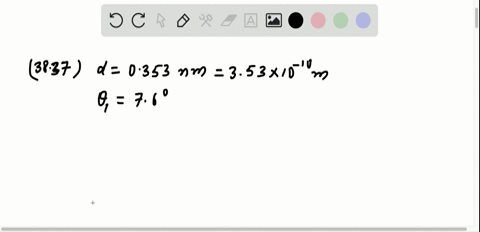

Potassium iodide (KI) has the same crystalline structure as $\mathrm{NaCl},$ with atomic planes separated by $0.353 \mathrm{nm} .$ A monochromatic x-ray beam shows a first-order diffraction maximum when the grazing angle is $7.60^{\circ} .$ Calculate the x-ray wavelength.

Key Concepts

Bragg's Law

Bragg's Law is a fundamental principle in crystallography and x?ray diffraction which asserts that constructive interference occurs when the path difference between x-rays reflected from successive crystal planes is an integer multiple of the wavelength. This law, expressed as n? = 2d sin?, connects the wavelength (?) of the incident radiation, the spacing (d) between atomic planes in the crystal, the order (n) of the diffraction, and the angle (?) between the incident beam and the crystal planes.

Interplanar Spacing

Interplanar spacing refers to the distance between parallel planes of atoms within a crystal lattice. This spacing plays a critical role in diffraction experiments as it determines the specific angles at which x-rays of a given wavelength will constructively interfere according to Bragg's Law, thereby revealing the material's crystal structure.

Grazing Incidence

Grazing incidence describes the experimental condition where the x-ray beam strikes the surface of a material at a small angle relative to the surface. When the atomic planes are parallel to the surface, the grazing angle directly corresponds to the angle used in Bragg’s Law, influencing the observed diffraction pattern and the calculation of the x-ray wavelength.

Diffraction Order

Diffraction order is the integer value (n) in Bragg's Law that indicates the multiple of the wavelength that fits into the extra path length between beams reflecting from consecutive lattice planes. The first-order diffraction (n = 1) is typically the primary observation and fundamental to initial analyses in x-ray diffraction experiments.
