00:02
So in this question, we're asked to draw and name all of the monochlorist substitution products that come from this molecule reacting with chlorine 2.
00:14
So the way that we would do this is what 2 -metho -pentine looks like is this.
00:21
I will first draw that.
00:22

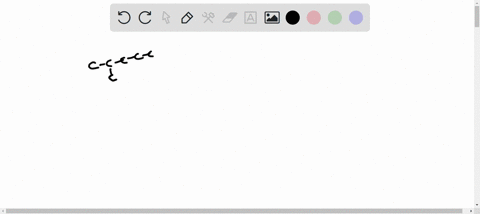

So it's going to be a pentane, which is 5 carbon, so 1, 2, 3, 4, 5.
00:28
And then on the second carbon, we have a methyl.
00:32
So that's what two methyl -pentane looks like.
00:34
So when it reacts with chlorine, it's going to have a radical reaction.
00:38
So it needs to react with a hydrogen.
00:41
So since this is a carbon, technically there are three hydrogen molecules here that it can react with.
00:47
So first, what's going to happen is there's going to be a chlorine molecule.
00:51
And when we do reactions that are with radicals, we have something called fish hook arrows that look like this.
00:58
So after this reaction takes place, so this is the chain initiation step.
01:03
And so after this, you're going to be left with radical chlorine.
01:06
So you're going to be left with two chlorines.
01:09
And what this arrow means is that there's a double bond here, and i mean a single bond here.
01:13
And within the single bond, there are two electrons.
01:15
So after the reaction, one electron is left with this chlorine and one electron is left with this coin.
01:20
So you're going to be left with this.
01:22
Now, one of these is going to go react with the molecule.
01:24
So you're going to have one of these molecules come here.
01:27
So what's going to happen is say it reacts with this molecule, this hydrogen.
01:33
So one is going to come here and the other is going to come here to make a bond.
01:37
And then the second part of this, the second electron that is in this bond between carbon and hydrogen is going to go to the carbon.
01:45
So after this reaction, after this chain propagation step, you're going to be left with the carbon that is sitting here is going to be left with an extra electron, right? because originally the carbon and hydrogen were in a bond.
02:07
And there were two electrons with them.
02:09
But since hydrogen went and formed the bond with chlorine, the extra electron is going to come back to carbon.
02:15
So there's going to be a bond there.
02:17
And then hcl is going to form as a byproducts.
02:20
So that is the first step.
02:22
And then what's going to happen is chlorine...
