Refer to Figure 11.36 to answer each question. a. A sample of steam begins on the line segm

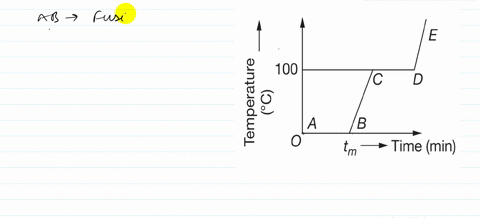

step 1 So for this problem, I have a small mock -up of the heating curve for water from your textbook.

Refer to Figure 11.36 to answer each question. a. A...

Refer to Figure 11.36 to answer each question. $\begin{array}{l}{\text { a. A sample of steam begins on the line segment labeled } 5 \text { on }} \\ {\text { the graph. Is heat absorbed or released in moving from the }} \\ {\text { line segment labeled } 5 \text { to the line segment labeled } 3 ? \text { What is }} \\ {\text { the sign of } q \text { for this change? }}\end{array}$$\begin{array}{l}{\text { b. In moving from left to right along the line segment labeled } 2} \\ {\text { on the graph, heat is absorbed, but the temperature remains }} \\ {\text { constant. Where does the heat go? }} \\ {\text { c. How would the graph change if it were for another substance }} \\ {\text { (other than water)? }}\end{array}$

Key Concepts

Phase Diagrams

Phase diagrams graphically represent the conditions of temperature and pressure under which distinct phases of a substance exist. These diagrams help in identifying regions of phase stability, delineating between phase transitions where latent heat is absorbed or released, and showing the influence of substance-specific properties on its thermodynamic behavior.

Heat Transfer and Sign Convention

Understanding heat transfer includes interpreting the sign of q, where a positive value indicates that heat is absorbed (endothermic process) and a negative value indicates that heat is released (exothermic process). This concept is essential when analyzing processes in thermodynamic graphs, particularly during phase transitions.

Latent Heat

Latent heat refers to the energy required to change a substance from one phase to another at a constant temperature. This concept explains why, during a phase change such as melting or condensation, heat is absorbed or released without a change in temperature, as the energy is used to overcome intermolecular forces rather than to increase kinetic energy.

Phase Changes

Phase changes involve the transformation of a substance from one state of matter to another (e.g., liquid to gas or gas to liquid). During these transitions, despite heat transfer taking place, the temperature remains constant. This is because the absorbed or released energy is used entirely for breaking or forming intermolecular bonds, rather than altering the thermal motion of particles.
