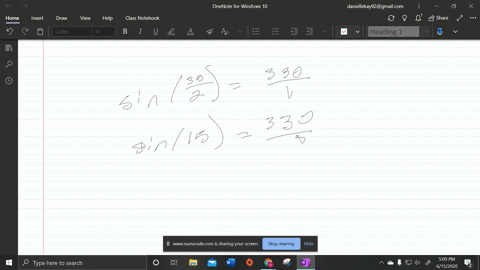

Refer to the following: When an airplane flies faster than the speed of sound, the sound waves that are formed take on a cone shape, and where the cone hits the ground, a sonic boom is heard. If $\theta$ is the angle of the vertex of the cone, then $\sin \left(\frac{\theta}{2}\right)=\frac{330 \mathrm{m} / \mathrm{sec}}{V}=\frac{1}{M},$ where $V$ is the speed of the plane and $M$ is the Mach number. (FIGURE CAN'T COPY) Sonic Booms. What is the Mach number if the plane is flying at 990 meters per second?

Refer to the following:
When an airplane flies faster than the speed of sound, the sound waves that are formed take on a cone shape, and where the cone hits the ground, a sonic boom is heard. If $\theta$ is the angle of the vertex of the cone, then $\sin \left(\frac{\theta}{2}\right)=\frac{330 \mathrm{m} / \mathrm{sec}}{V}=\frac{1}{M},$ where $V$ is the speed of the plane and $M$ is the Mach number. (FIGURE CAN'T COPY)

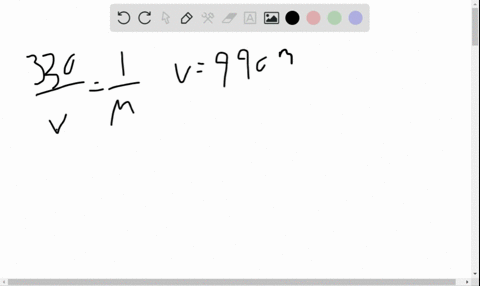

Sonic Booms. What is the Mach number if the plane is flying at 990 meters per second?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Speed of Sound

The speed of sound is the rate at which sound waves propagate through a medium, which depends on properties like temperature, density, and composition of the medium. It serves as the reference speed for defining various regimes of flight, including subsonic, transonic, and supersonic speeds.

Sonic Boom

A sonic boom is the audible shock wave produced when an object travels faster than the speed of sound, causing sound waves to merge and form a cone-shaped disturbance. The impact of this cone when it reaches the ground results in a loud, explosive sound, which is characteristic of supersonic travel.

Mach Number

The Mach number is a dimensionless parameter defined as the ratio of an object's speed to the speed of sound in the medium through which it is moving. It is a key concept in aerodynamics, especially when evaluating the behavior of vehicles at high speeds, such as in supersonic or hypersonic flight.

Mach Cone

The Mach cone is the conical shock wave pattern created by an object moving at supersonic speeds, where the half-angle of the cone is determined by the ratio of the speed of sound to the object's speed. This concept is instrumental in understanding how and where the intense pressure waves, leading to a sonic boom, are distributed.
