Refer to the following: When an airplane flies faster than...

Refer to the following: When an airplane flies faster than the speed of sound, the sound waves that are formed take on a cone shape, and where the conc hits the ground, a sonic boom is heard. If $\theta$ is the angle of the vertex of the conc, then $\sin \left(\frac{\theta}{2}\right)=\frac{330 \mathrm{m} / \mathrm{sec}}{V}=\frac{1}{M},$ where $V$ is the specd of the plane and $M$ is the Mach number. GRAPH CANT COPY Sonic Booms. What is the Mach number if the plane is flying at 990 meters per second?

Refer to the following:

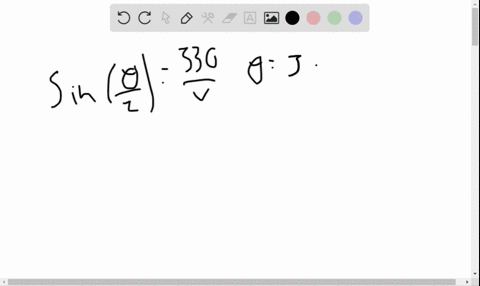

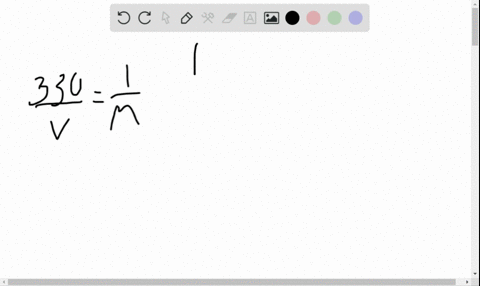

When an airplane flies faster than the speed of sound, the sound waves that are formed take on a cone shape, and where the conc hits the ground, a sonic boom is heard. If $\theta$ is the angle of the vertex of the conc, then $\sin \left(\frac{\theta}{2}\right)=\frac{330 \mathrm{m} / \mathrm{sec}}{V}=\frac{1}{M},$ where
$V$ is the specd of the plane and $M$ is the Mach number.
GRAPH CANT COPY

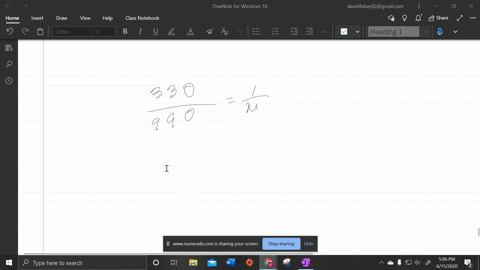

Sonic Booms. What is the Mach number if the plane is flying at 990 meters per second?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Mach cone

A Mach cone is a conical shock wave produced when an object travels through a medium at a speed exceeding that of sound. The cone's geometry, including its vertex angle, is directly related to the object's Mach number, and its interaction with the ground or surrounding structures results in phenomena such as sonic booms.

Speed of sound

The speed of sound is the rate at which sound waves propagate through a medium, typically influenced by the medium's temperature and composition. It serves as the baseline for determining Mach numbers and is key in evaluating how objects interact with their surrounding fluid dynamics at different speeds.

Mach number

Mach number is a dimensionless quantity representing the ratio of an object's speed to the speed of sound in the surrounding medium. It is crucial in aerodynamics for characterizing the regimes of flight, such as subsonic, transonic, and supersonic, and plays a vital role in understanding shock waves and sonic booms.
