Referring to the figure, decide whether each of the following equations is true or false. Assume that all of the capacitors have different capacitances. The potential difference across capacitor $C_{1}$ is $V_{1}$. The potential difference across capacitor $C_{2}$ is $V_{2}$. The potential difference across capacitor $C_{3}$ is $V_{3}$. The potential difference across capacitor $C_{4}$ is $V_{4}$. The charge stored in capacitor $C_{1}$ is $q_{1}$. The charge stored in capacitor $C_{2}$ is $q_{2}$. The charge stored in capacitor $C_{3}$ is $q_{3}$. The charge stored in capacitor $C_{4}$ is $q_{4}$. a) $q_{1}=q_{3}$ b) $V_{1}+V_{2}=V$ c) $q_{1}+q_{2}=q_{3}+q_{4}$ d) $V_{1}+V_{2}=V_{3}+V_{4}$ e) $V_{1}+V_{3}=V$

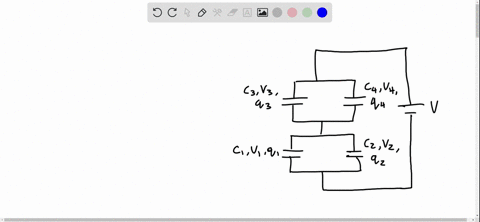

Referring to the figure, decide whether each of the following equations is true or false. Assume that all of the capacitors have different capacitances. The potential difference across capacitor $C_{1}$ is $V_{1}$. The potential difference across capacitor $C_{2}$ is $V_{2}$. The potential difference across capacitor $C_{3}$ is $V_{3}$. The potential difference across capacitor $C_{4}$ is $V_{4}$. The charge stored in capacitor $C_{1}$ is $q_{1}$. The charge stored in capacitor $C_{2}$ is $q_{2}$. The charge stored in capacitor $C_{3}$ is $q_{3}$. The charge stored in capacitor $C_{4}$ is $q_{4}$.
a) $q_{1}=q_{3}$
b) $V_{1}+V_{2}=V$
c) $q_{1}+q_{2}=q_{3}+q_{4}$
d) $V_{1}+V_{2}=V_{3}+V_{4}$
e) $V_{1}+V_{3}=V$

Key Concepts

Capacitors in Series

When capacitors are connected in series, the same amount of charge flows through each capacitor, regardless of their individual capacitances. This means that even though the voltages across each capacitor can differ (determined by the ratio of the applied voltage and the capacitance values), the charge stored on each remains equal because current continuity requires a uniform charge transfer.

Capacitors in Parallel

In a parallel configuration, all capacitors experience the same potential difference across their terminals, since they are directly connected to the same two nodes in the circuit. However, the amount of charge stored on each capacitor can be different because it is directly related to its capacitance, as defined by the relationship q = CV.

Voltage Division in Series Circuits

In series circuits, the total applied voltage is divided among individual components. For capacitors, this means that the sum of the individual voltage drops across each capacitor equals the total voltage, and the voltage across each capacitor is inversely proportional to its capacitance. This principle is critical when analyzing circuits with multiple capacitors in series.

Charge Conservation

Charge conservation is a fundamental principle in circuit analysis, which states that the total charge in an isolated system remains constant. In capacitor networks, particularly in series connections, the conservation of charge ensures that the same charge passes through each capacitor, playing a key role in understanding how charges distribute in circuits.
