Review Conceptual Example 7 before starting this problem. A...

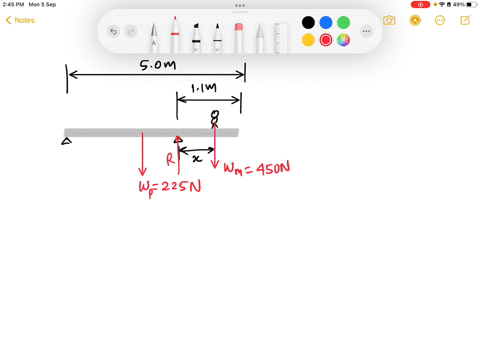

Review Conceptual Example 7 before starting this problem. A uniform plank of length $5.0 \mathrm{m}$ and weight $225 \mathrm{N}$ rests horizontally on two supports, with $1.1 \mathrm{m}$ of the plank hanging over the right support (see the drawing). To what distance $x$ can a person who weighs $450 \mathrm{N}$ walk on the overhanging part of the plank before it just begins to tip?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Torque (Moment)

Torque is the force that causes rotation about a pivot point; it is calculated as the product of the force and the perpendicular distance from the pivot. In static equilibrium problems, the sum of the torques around any pivot must cancel out, which is crucial when analyzing tipping points.

Center of Mass (Center of Gravity)

The center of mass is the point where an object's mass is evenly distributed and where its weight can be considered to act. For uniform objects, this is typically at the geometric center. Understanding this concept helps in determining how distributed weight contributes to the overall torque.

Static Equilibrium

Static equilibrium occurs when all forces and torques acting on a system balance each other so that there is no net motion. In problems involving beams on supports, establishing equilibrium involves setting up conditions where the sum of forces and the sum of torques are zero.

Distributed Load vs. Point Load

A distributed load refers to a force spread uniformly over an area or length, such as the weight of a uniform beam, whereas a point load is concentrated at a single point, such as the weight of a person. Differentiating between these types of loads is essential for accurately calculating the net torque and ensuring equilibrium in the system.
