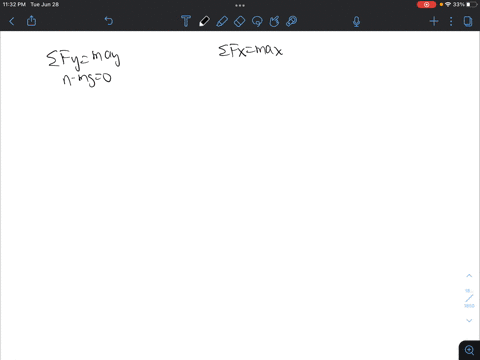

Review problem. A car moves with speed $v$ on a horizontal circular track of radius $R$ . A head-on view of the car is shown in Figure $\mathrm{P} 12.60$ . The height of the car's center of mass above the ground is $h,$ and the separation between its inner and outer wheels is $d .$ The road is dry, and the car does not skid. Show that the maximum speed the car can have without overturning is given by $$ v_{\max }=\sqrt{\frac{g R d}{2 h}} $$ To reduce the risk of rollover, should one increase or decrease $h$ ? Should one increase or decrease the width $d$ of the wheel base?

Review problem. A car moves with speed $v$ on a horizontal circular track of radius $R$ . A head-on view of the car is shown in Figure $\mathrm{P} 12.60$ . The height of the car's center of mass above the ground is $h,$ and the separation between its inner and outer wheels is $d .$ The road is dry, and the car does not skid. Show that the maximum speed the car can have without overturning is given by
$$
v_{\max }=\sqrt{\frac{g R d}{2 h}}
$$
To reduce the risk of rollover, should one increase or decrease $h$ ? Should one increase or decrease the width $d$ of the wheel base?

Key Concepts

Centripetal Force and Acceleration

When a car moves along a circular path, it experiences a centripetal acceleration that is directed toward the center of the circle. This acceleration, which is proportional to the square of the speed and inversely proportional to the radius, gives rise to inertial forces that can cause the car to roll or tip if not properly balanced by the design of the vehicle.

Rotational Equilibrium and Moment Analysis

The condition for overturning involves analyzing the moments (torques) about the pivot point where the tires contact the road. A car will roll over if the moment generated by the lateral inertial force (due to centripetal acceleration) exceeds the restoring moment provided by the weight of the car. Establishing this balance leads to deriving the maximum speed equation beyond which the vehicle will begin to tip.

Center of Mass Considerations

The height of the center of mass plays a critical role in vehicle stability. A higher center of mass increases the lever arm for the inertial forces during a turn, thus elevating the risk of overturning. Lowering the center of mass reduces the moment due to these forces, making the vehicle more stable during lateral acceleration.

Wheelbase and Track Width

The width or separation of the wheels (i.e., the track width) is another crucial factor in vehicle rollover prevention. A wider wheelbase increases the distance between the points of contact with the road, thereby providing a larger base of support and a longer lever arm to counteract the overturning torque. A wider track enhances stability by requiring a greater lateral force to generate a moment capable of causing rollover.
