Show that the expression for the period of a physical penduhm reduces to that of a simple pendulum if the physical pendulum consists of a particle with mass $m$ on the end of a massless string of length $L .$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Physical Pendulum

A physical pendulum is any rigid body that is free to oscillate about a fixed horizontal axis under the influence of gravity. Its period of oscillation depends on both its mass distribution, represented by its moment of inertia, and the distance between the pivot point and its center of mass.

Simple Pendulum

A simple pendulum consists of a point mass suspended from an essentially massless string, where all of the mass is concentrated at a single point. Its period for small oscillations is given by T = 2??(L/g), derived under the assumption of small angular displacements.

Moment of Inertia

The moment of inertia quantifies how the mass of an object is distributed with respect to a rotational axis. In the case of a simple pendulum, where the mass is concentrated at a point distance L from the pivot, the moment of inertia simplifies to mL².

Reduction from Physical to Simple Pendulum

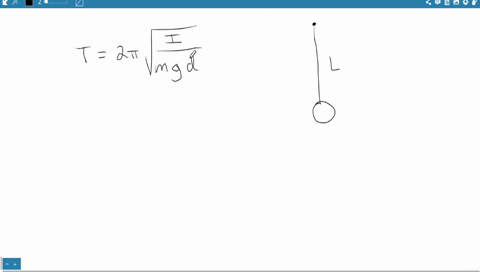

When a physical pendulum is modeled as a point mass at the end of a massless string, its general period expression T = 2??(I/(mgd)) reduces to that for a simple pendulum. Substituting I = mL² and d = L into the formula directly yields T = 2??(L/g), showing the equivalence under these specific assumptions.
