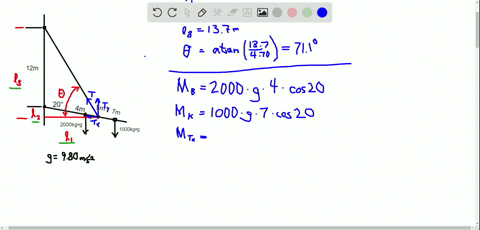

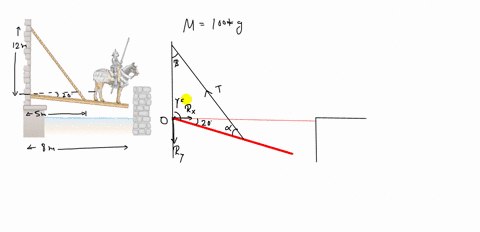

Sir Lost-a-Lot dons his armor and sets out from the castle on his trusty steed in his quest to improve communication between damsels and dragons (Fig. Pl2.16). Unfortunately, his squire lowered the drawbridge too far and finally stopped it $20.0^{\circ}$ below the horizontal. Lost-a-Lot and his horse stop when their combined center of mass is 1.00 $\mathrm{m}$ from the end of the bridge. The uniform bridge is 8.00 $\mathrm{m}$ long and has mass $2000 \mathrm{kg} .$ The lift cable is attached to the bridge 5.00 $\mathrm{m}$ from the hinge at the castle end and to a point on the castle wall 12.0 $\mathrm{m}$ above the bridge. Lost-a-Lot's mass combined with his armor and steed is 1000 $\mathrm{kg}$ . Determine (a) the tension in the cable and the (b) horizontal and (c) vertical force components acting on the bridge at the hinge.

Key Concepts

Static Equilibrium

Static equilibrium is the condition where an object remains at rest because the sum of all forces and the sum of all torques (moments) acting on it are equal to zero. This principle is essential in engineering and physics to analyze structures and systems that do not accelerate, ensuring that all applied forces and moments balance each other.

Torque (Moment) Equilibrium

Torque or moment equilibrium involves summing the moments about a pivot or hinge point such that the clockwise moments equal the anticlockwise moments. This concept is used to analyze situations where forces are applied at different distances from a pivot, helping solve for unknown forces or tensions by ensuring that the rotational effects cancel out.

Center of Mass

The center of mass of a system is the point at which the entire mass of the system can be considered to be concentrated. In problems involving uniform beams or distributed loads combined with point loads, locating the center of mass is crucial for accurately calculating the net torque acting on the system.

Force Decomposition

Force decomposition involves breaking a force into its perpendicular components, typically horizontal and vertical. This technique simplifies the analysis of forces acting at angles, allowing separate equilibrium equations to be written for each direction.

Lever Arm

The lever arm is the perpendicular distance from the axis of rotation (or hinge) to the line of action of the force. Understanding leverage is critical when computing torques, as the effectiveness of a force in causing rotation depends directly on this distance.

Cable Tension

Cable tension refers to the pulling force transmitted along a cable when it supports a load or provides balance in a system. Calculating the tension in the cable involves analyzing the contributions of both its magnitude and the angle at which it acts, ensuring that the system’s equilibrium is maintained.
