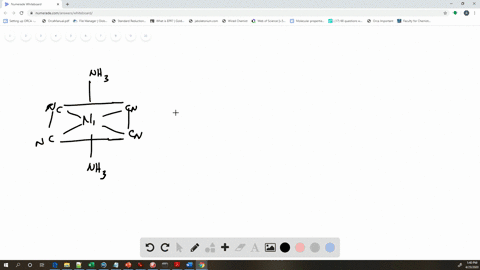

Sketch and explain the most likely pattem for the crystal field diagram for the complex ion trans-diamminetetracyanonickelate(II), where $\mathrm{CN}^{-}$ produces a much stronger crystal field than $\mathrm{NH}_{3}$. Explain completely and label the $d$ orbitals in your diagram. Assume the $\mathrm{NH}_{3}$ ligands lie on the $z$ axis.

Key Concepts

Ligand Field Strength Variation

The magnitude of d orbital splitting depends on the field strengths of the ligands, as determined by the spectrochemical series. Strong field ligands, such as CN–, generate larger splitting compared to weaker field ligands like NH3. In mixed-ligand complexes, this variation can lead to anisotropic splitting, where the different orientations of the ligands (axial versus equatorial) result in uneven shifts in the energy levels of the d orbitals.

Tetragonal Distortion

A tetragonal distortion occurs when the symmetry of an octahedral complex is broken, as in cases where axial and equatorial ligands differ in their field strengths. In such a scenario, the eg orbitals split further; for example, if the axial ligands exert a weaker field than the equatorial ligands, the dz2 orbital (which points along the z-axis) can be lower in energy relative to the dx2-y2 orbital. A similar but less pronounced splitting can also occur within the t2g set.

d Orbital Labeling and Orientation

Each d orbital is labeled according to its shape and orientation relative to the Cartesian axes. In octahedral or tetragonally distorted octahedral environments, the eg orbitals (dz2 and dx2-y2) and t2g orbitals (dxy, dxz, and dyz) interact differently with ligands based on how their lobes are directed. Clear labeling is essential to correctly predict which orbitals will experience greater repulsion based on the positions of the ligands, such as NH3 placed along the z-axis.

Crystal Field Theory

Crystal field theory explains how the approach of ligands, treated as point charges or dipoles, creates an electrostatic field that splits the degenerate d orbitals of a transition metal ion into groups of differing energies. The pattern of splitting depends on the geometry of the complex and the spatial arrangement of the ligands.

Octahedral Splitting

In a classic octahedral complex, the five d orbitals split into two groups: a lower-energy t2g set (dxy, dxz, dyz) and a higher-energy eg set (dz2, dx2-y2). This splitting arises because the eg orbitals are directed along the axes where the ligands approach, leading to increased electrostatic repulsion compared with the t2g orbitals that lie between the ligand directions.
