Solve the given problems. Sketch an appropriate figure, unless the figure is given. A surveyor on the New York City side of the Hudson River wishes to find the height of a cliff (the Palisades) on the New Jersey side. Figure 4.56 shows the measurements that were made. How high is the cliff? (In the figure, the triangle containing the height $h$ is vertical and perpendicular to the river.) (FIGURE CAN'T COPY)

Solve the given problems. Sketch an appropriate figure, unless the figure is given.

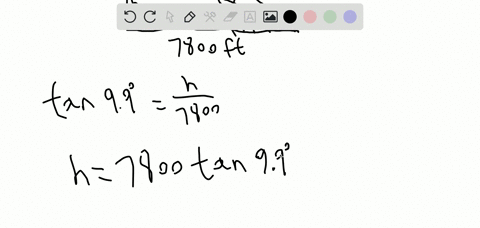

A surveyor on the New York City side of the Hudson River wishes to find the height of a cliff (the Palisades) on the New Jersey side. Figure 4.56 shows the measurements that were made. How high is the cliff? (In the figure, the triangle containing the height $h$ is vertical and perpendicular to the river.)
(FIGURE CAN'T COPY)

Key Concepts

Similar Triangles

Similar triangles are a fundamental concept in geometry where two triangles have the same shape but different sizes. This means that their corresponding angles are equal and their corresponding sides are in proportion. In problems involving heights and distances, similar triangles allow one to set up proportions between known and unknown lengths, making it possible to calculate an unknown height given measurable distances and angles.

Right Triangle Geometry

Right triangle geometry involves the study of triangles that include a 90-degree angle. This is especially useful in surveying problems where vertical heights and horizontal distances form a right triangle. The properties of right triangles, such as the Pythagorean theorem and trigonometric ratios, are crucial for breaking down a real-world problem into measurable components.

Trigonometric Ratios

Trigonometric ratios, such as sine, cosine, and tangent, provide relationships between the angles and sides of a right triangle. In applications like the one described, the tangent function is particularly useful because it relates the angle of elevation directly to the ratio of the opposite side (the height of the object) to the adjacent side (the horizontal distance). This allows for the calculation of height when the angle and distance are known.

Surveying Techniques

Surveying techniques involve the practical application of geometric and trigonometric methods to measure distances, angles, and elevations. In this context, measurements taken from a specific point are used to compute unknown heights or distances, such as the height of a cliff across a river, through careful observation and calculation. These techniques are essential in civil engineering and geodesy for accurately acquiring spatial data in the field.
