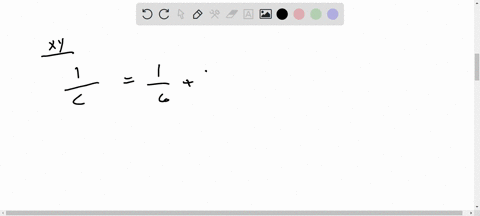

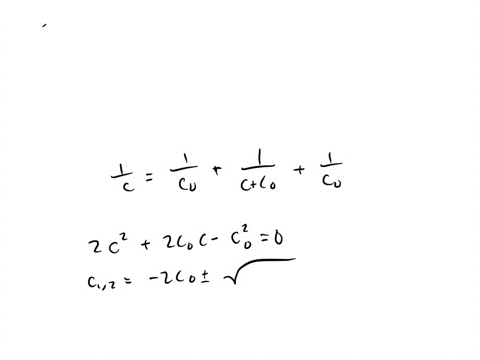

Some physical systems possessing capacitance continuously distributed over space can be modeled as an infinite array of discrete circuit elements. Examples are a microwave waveguide and the axon of a nerve cell. To practice analysis of an infinite array, determine the equivalent capacitance $C$ between terminals $X$ and $Y$ of the infinite set of capacitors represented in Figure $\mathrm{P} 26.30 .$ Each capacitor has capacitance $C_{0} .$ Suggestion: Imagine that the ladder is cut at the line $A B,$ and note that the equivalent capacitance of the infinite section to the right of $A B$ is also $C$. CAN'T COPY THE FIGURE

Key Concepts

Lumped-Element Modeling of Distributed Systems

Distributed physical systems, such as waveguides or nerve axons, have properties that vary continuously over space. By modeling these systems as an infinite array of lumped discrete circuit elements, engineers and scientists can apply circuit analysis techniques to study their behavior. This approach simplifies the study of complex, continuously distributed systems by approximating them with a network of idealized components.

Self-Similarity in Infinite Networks

The property of self-similarity in an infinite network means that a portion of the network, when removed, has an equivalent behavior to the entire network. This recursive characteristic allows one to set up an equation where the equivalent capacitance of the whole network is expressed in terms of itself, facilitating the calculation of that parameter.

Series and Parallel Combination of Capacitors

Capacitors in circuits combine differently when arranged in series or parallel. In series, the reciprocal of the equivalent capacitance is the sum of the reciprocals of individual capacitances, while in parallel, the equivalent capacitance is the sum of the individual capacitances. These rules are essential when reducing complex networks into simpler, equivalent circuits.

Electrical Capacitance

Capacitance represents a component's ability to store electrical energy in an electric field. This concept is fundamental to circuit analysis, where understanding how capacitors store and release energy is crucial for analyzing circuit behavior under various conditions.

Infinite Ladder Networks

An infinite ladder network is a circuit made up of repeating units that extend indefinitely. Analyzing such networks involves recognizing the repeating pattern and leveraging it to find a consistent equivalent parameter, despite the infinite extent of the structure. This concept is important for modeling systems where distributed elements can be approximated by repeating discrete components.
