Sonya is designing a diffraction experiment for her...

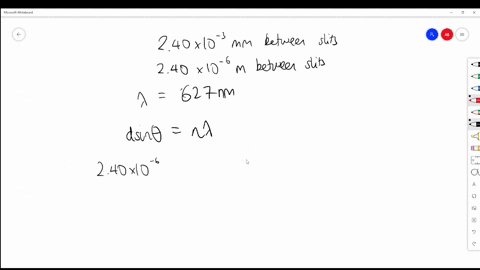

Sonya is designing a diffraction experiment for her students. She has a laser that emits light of wavelength $627 \mathrm{~nm}$ and a grating with a distance of $2.40 \times 10^{-3} \mathrm{~mm}$ between slits. She hopes to shine the light through the grating and display a total of nine interference maxima on a screen. She finds that no matter how she arranges her setup, she can see only seven maxima. Assuming that the intensity of the light is not the problem, why can Sonya not display the $m=4$ interference maxima on either side?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Angular Constraints in Diffraction

Because the sine of an angle must be between -1 and 1, the equation d sin? = m? imposes a physical limit on the highest order of diffraction that can be observed. If m?/d exceeds 1, it is impossible to have a corresponding angle ?. In the context of the given problem, the m = 4 interference order would require sin? > 1, making it physically unobservable.

Interference Maximum Condition

The condition for constructive interference in a grating is given by the equation d sin? = m?, where d is the distance between adjacent slits, ? is the wavelength of the light, and m is the order of the maximum. This condition explains why only certain angles produce bright fringes in a diffraction pattern.

Diffraction Grating

A diffraction grating uses many parallel slits to produce an interference pattern of bright and dark regions. The positions of the interference maxima are determined by the condition that the path difference between adjacent slits is an integer multiple of the wavelength. This concept is central to understanding how light interacts with periodic structures, and it underlies many optical instruments and experiments.
