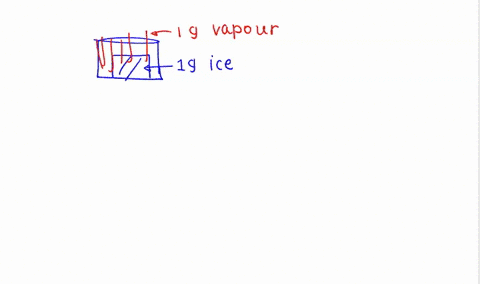

ssm Ice at $-10.0^{\circ} {C}$ and steam at $130^{\circ} {C}$ are brought together at atmospheric pressure in a perfectly insulated container. After thermal equilibrium is reached, the liquid phase at $50.0^{\circ} {C}$ is present. Ignoring the container and the equilibrium vapor pressure of the liquid at $50.0^{\circ} {C},$ find the ratio of the mass of steam to the mass of ice. The specific heat capacity of steam is 2020 ${J} / {kg} \cdot {C}^{\circ}$ )

Key Concepts

Energy Conservation

This concept emphasizes that energy cannot be created or destroyed but only transformed. In thermal problems, particularly those involving phase changes, the total energy exchanged by all components within an isolated system must sum to zero. This principle is fundamental in setting up equations for heat lost and heat gained by different substances involved, ensuring the calculation of the equilibrium state is accurately balanced.

Latent Heat

Latent heat refers to the energy required to change the phase of a substance without a change in its temperature. This includes latent heat of fusion, needed for melting ice, and latent heat of vaporization or condensation, required for converting water between liquid and vapor states. Using latent heat values in calculations helps quantify the energy shifts associated with phase transitions in thermal systems.

Specific Heat Capacity

Specific heat capacity is the amount of heat energy required to raise the temperature of a unit mass of a substance by one degree Celsius. It plays a key role in determining the energy changes associated with temperature variations in a substance that does not undergo a phase change, thereby allowing for the determination of sensible heat exchanged in the process.

Thermal Equilibrium

Thermal equilibrium is the state in which all parts of a system have reached the same temperature, resulting in no net heat flow between them. In multi-phase systems, achieving thermal equilibrium often involves a combination of sensible heating or cooling and latent heat exchanges due to phase transitions, making it a central concept in solving heat balance problems.
