Suppose the prism of Fig. 33-53 has apex angle ϕ=60.0^∘ and index of refraction n=1.60. (a) What

Suppose the prism of Fig. 33-53 has apex angle ϕ=60.0^∘ and...

Key Concepts

Minimum Deviation Condition

The minimum deviation condition in a prism occurs when the path of a light ray through the prism is symmetric; that is, the angle of incidence on the first face equals the angle of emergence on the second face. At this condition, the overall deviation of the light ray is minimized. This concept is useful in optical design and analysis because it provides a specific condition relating the prism’s apex angle, the refractive index, and the incident/emergent angles, allowing for simplified calculations of the ray's path through the prism.

Prism Geometry

The geometry of a prism, particularly the apex angle, plays a critical role in the path that a light ray takes as it passes through. The angular relationships at the interfaces of the prism determine how the light ray is refracted at each boundary. By analyzing the prism’s internal angles and applying Snell's Law at the entry and exit faces, one can derive relationships that govern the conditions under which light will propagate through the prism, including the situation where internal reflections are avoided.

Snell's Law

Snell's Law is a foundational principle in optics that relates the angles of incidence and refraction when a wave crosses the interface between two media with different refractive indices. It is expressed as n1 sin ?1 = n2 sin ?2, where n1 and n2 are the refractive indices of the two media, and ?1 and ?2 are the angles the wave makes with the normal to the interface. This law is essential for analyzing how light beams are bent when entering or leaving a prism and is used to determine the relationship between the external and internal angles in problems involving refraction at planar surfaces.

Total Internal Reflection and Critical Angle

Total internal reflection occurs when light attempts to move from a medium with a higher refractive index to one with a lower refractive index at an angle greater than the critical angle, resulting in the light being completely reflected back into the medium. The critical angle is defined as the angle of incidence for which the angle of refraction is 90° and can be calculated using the relationship sin ?_c = n2/n1 for n1 > n2. In the context of prisms, understanding the critical angle is crucial when determining the minimum angle of incidence that still allows the light to exit the prism rather than being totally internally reflected.

Transcript

00:01 For this problem on the topic of electromagnetic waves, we want to suppose the given prism has an apex angle phi of 60 degrees and an index of refraction of 1 .6.

00:11 We want to find the smallest angle of incidence theta for which a ray can enter the left face of the prism and exit the right face.

00:18 We want to find the angle of incidence theta that is required for the ray to exit the prism with an identical angle theta for its refraction as it does in the figure.

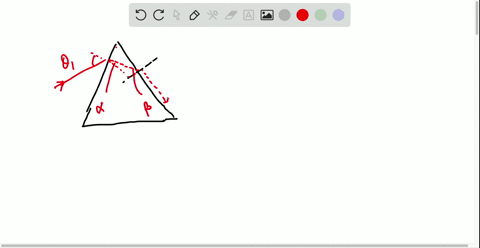

00:28 Now we'll refer to the entry point for the original incident ray as point a, which we take as the left -hand side of the prism as in the figure.

00:36 The prism vertex is point b and the point where the interior ray strikes the right surface of the prism as point c.

00:42 The angle between a -b and the interior ray is beta.

00:46 The angle between b -c and the interior ray is alpha.

00:50 Now when the incident ray is at the minimum angle for which light is able to exit the prism, the light exits along the second face.

00:57 Angle of refraction at the second phase is 90 degrees, and the angle of incidence there for the interior ray is the critical angle for total internal reflection.

01:05 So if we let theta 1 be the angle of incidence for the original incident ray, and theta 2 be the angle of refraction at the first face, and theta 3, the angle of incidence at the second face, the law of refraction applied to point c yields n sine theta 3 equal to 1.

01:25 And so sign of the angle theta 3 is equal to 1 over n, which is 1 over 1 .6.

01:37 This gives the angle theta 3 to be 38 .68 degrees.

01:46 Now the interior angle of the triangle abc must sum to 180 degrees.

01:51 That means that alpha plus beta is equal to 100.

01:57 And 20 degrees and alpha is equal to 90 degrees minus theta 3.

02:05 So alpha is 51 .32 degrees, which means that the angle beta is 120 minus 51 .32, which is 69 .68 degrees...
